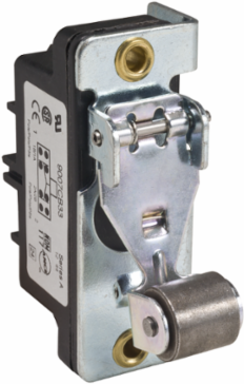

Telemecanique Sensors 9007CB31 Snap switch 9007A, option version, Spring return roller lever plunger metal RH bracket + 0.22" roller

MPN: 9007CB31
UPC: 785901723806
PPN: TES-9007CB31

$158.95

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Snap switch 9007A, option version, Spring return roller lever plunger metal RH bracket + 0.22" roller

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Operator profile	Plunger head
Body material	Cast zinc
Fixing mode	By the body
Type of operator	Spring return roller lever plunger metal RH bracket + 0.22" roller
Type of approach	Traverse approach, 2 directions
Contact operation	Snap action
Contact form	Form ZZ
Positive opening	Without

Material	Metal
Operator material	Cast zinc
Movement of operating head	Linear
Switch actuation	By 30° cam
Electrical connection	1-2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Contacts type and composition	2(NC-NO), switch function: DPDT-DB
Contacts material	Silver contacts
Terminals description ISO n°1	(1-2)NC (3-4)NO (5-6)NC (7-8)NO

Main

Range of product	9007
Product or component type	Snap limit switch
Body type	Fixed

Series name	Heavy duty
Device short name	9007AO/CO

Environment

NEMA degree of protection	NEMA 1 conforming to Nema type 250

IP degree of protection	IP20 conforming to IEC 60529

Snap switch 9007A, option version, Spring return roller lever plunger metal RH bracket + 0.22" roller
