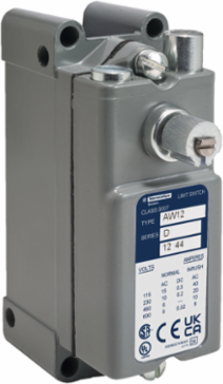

Telemecanique Sensors 9007AW12 Limit switch, 9007, 600 VAC 15amp aw +options

This product is part of the Nema Limit Switches range, an offer of heavy duty metal limit switches. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 normally closed + 1 normally opened, SPDT-DB (single pole double throw, double break) form Z, snap action contacts. The cast zinc spring return mechanism without operating lever supports a lateral approach, 1 direction programmable and switch actuation from left convertible to right, CCW convertible to CW. It is furnished with screw clamp terminals for electrical connection. It is a safety switch with a rated operating current of 5A at 600V AC, 6A at 480V AC, 10A at 240V AC, 15A at 120V AC, 0.02A at 600V DC, 0.2A at 250V DC, 0.5A at 125V DC. It is an IP65 and NEMA 1/2/4/12/13 rated product. This NEMA limit switch has fixed body made of metal. Its dimensions are 68.33mm (width) x 36.58mm (depth) x 93.47mm (height) and weighs 0.57kg. This product is certified by UL and CSA. It complies with UL 508, NEMA 250 and C22-2-14 standards. It can be fitted with a surface mounting standard box by fixing holes. Heavy duty metal industrial precision oil tight enclosed switch with unique features, micrometre adjustable and low temperature operation. Compatible with 9007C range levers. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality.
