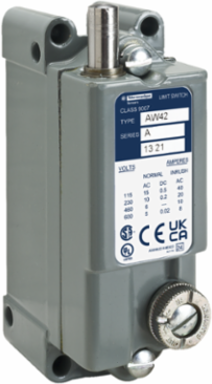

Telemecanique Sensors 9007AW42 Limit switch, 9007, 600 VAC 15amp aw +options
- MPN: 9007AW42
- UPC: 785901808534
- PPN: TES-9007AW42
- UNSPSC: 39122213
CAD
$379.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 600 VAC 15amp aw +options
Documentation & Downloads
Specifications
Key Specifications
| Series Name | heavy duty |
|---|---|
| Body Type | fixed |
| Product Or Component Type | limit switch |
| Range Of Product | 9007 |
|---|---|
| Product Specific Application | precision |
| Device Short Name | 9007AW |
Complementary
| Switch Actuation | on end |
|---|---|
| Height | 3.68-3.68 in |
| Mounting Mode | surface mounting standard box |
| [Ui] Rated Insulation Voltage | 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block |
| Electrical Connection | 1-2 screw-clamp terminals AWG 22...AWG 12) |
| Contact Operation | snap action |
| [Ie] Rated Operational Current | 5 A 600 V AC, A600 NEMA rating designation || 6 A 480 V AC, A600 NEMA rating designation || 10 A 240 V AC, A600 NEMA rating designation || 15 A 120 V AC, A600 NEMA rating designation || 0.02 A 600 V DC || 0.2 A 250 V DC || 0.5 A 125 V DC |
| Contacts Material | silver contacts |
| Body Material | cast zinc |
| Cable Entry | 1 entry for 1/2" - 14 NPT ANSI B1.20.1 |
| Contacts Type And Composition | NC-NO SPDT-DB |
| Width | 2.22 in |
| Material | metal |
| Type Of Operator | spring return push rod plunger steel with micrometer adjustment |
| Repeat Accuracy | +/- 0.001 in |
| Type Of Approach | vertical approach, 1 direction |
|---|---|
| Movement Of Operating Head | linear |
| Terminals Description Iso N°1 | (1-2)NC || (3-4)NO |
| Positive Opening | without |
| Number Of Steps | 1 |
| Operator Material | cast zinc |
| Fixing Mode | by the body |
| Operator Profile | plunger head |
| [Ithe] Conventional Enclosed Thermal Current | 15 A |
| Contact Form | Form Z |
| Minimum Force For Tripping | 3 lbf |
| Depth | 1.44 in |
| Net Weight | 1.25 lb(US) |
| Number Of Poles | 1 |
Environment
| Ambient Air Temperature For Operation | 0-185 °F |
|---|---|
| Nema Degree Of Protection | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250 |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | 0-185 °F |
|---|---|
| Protective Treatment | epoxy powder coat |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP111160EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|
