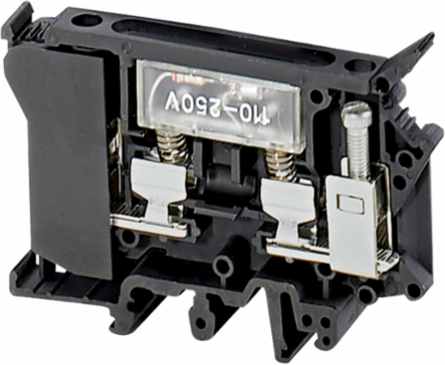

Schneider Electric NSYTRV42SF6LA Linergy TR Fused Disconnect Terminal Block for 6.3x32mm Fuse, 110-250V, 2 Points
- MPN: NSYTRV42SF6LA
- PPN: SCH-NSYTRV42SF6LA
CAD
$41.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Linergy TR Fused Disconnect Terminal Block, manufactured by Schneider Electric, is engineered to provide a reliable and efficient solution for circuit protection in automation and control applications. Designed to accommodate a 6.3x32mm fuse, this terminal block operates effectively within a voltage range of 110-250V while offering two connection points for versatile installation. Its robust design ensures that it meets the stringent demands of modern systems, making it an essential component for panel builders and electrical installations seeking both functionality and safety in their configurations.
Documentation & Downloads
Specifications
Additional
- Amperage
- 10 A EN/IEC 60947-7-1, cURus, CSA
- Fuse Size
- 6.3 x 32 mm
- Mounting Mode
- Clip-on
- Width
- 10.2 mm (0.40 in)
- Connection Type
- 1 x screw terminal upstream, 1 x screw terminal downstream
- Nominal Cross Section
- 16 mm8 (0.02 in8)
- Tightening Torque
- 0.6-0.8 N.m (5.31-7.08 lbf.in)
- Material
- Polyamide 6/6 insulating case
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250/VDE 0303-T4
- Resistivity
- 10000 M1 IEC 60093, VDE 0303-T30
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093, VDE 0303-T30
- Net Weight
- 34.2 g (1.21 oz)
- Product Certifications
- CSA, EAC, cURus
- Colour
- Black
- Range Compatibility
- Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
- Range
- Linergy
- Product Or Component Type
- Terminal block
- Ambient Air Temperature For Operation
- -40 to 130 0C IEC 60216-1, VDE 0304-T21
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts
- Toxic Heavy Metal Free
- Yes
Voltage500 V EN/IEC 60947-7-1, 600 V cURus, 600 V CSA
Number of Terminals2
Length79 mm (3.11 in)
Height60.5 mm (2.38 in)
Connection PositionSideways
Cable Cross Section0.5-16 mm8, flexible without cable end or solid
Wire Stripping Length9 mm (0.35 in)
Dielectric Strength1000 V IEC 60243-1
Dielectric Constant3.7 at 1 MHz
Surface Resistance1000 G1 IEC 60093, VDE 0303-T30
Flame RetardanceV0 0.8 mm UL 94
Environment Temperature Range-40 to 130 0C (-40 to 266 0F) IEC 60216-1, VDE 0304-T21
ComplianceEU RoHS, REACh, China RoHS
Country of OriginTurkey
Product CompatibilitySpacial enclosures
Terminal Block Level1
Tool TypeConnection screwdriver, disconnection screwdriver
Eu Rohs DirectiveCompliant
Reach RegulationFree of Substances of Very High Concern above threshold
Rohs Exemption InformationYes
Reach Free Of SvhcYes
