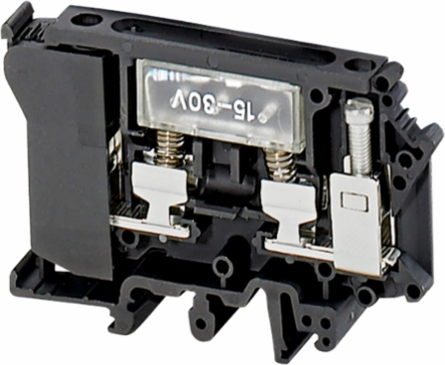

Schneider Electric NSYTRV42SF6LD Linergy TR Fused Disconnect Terminal Block for 6.3x32 mm Fuse, Black
- MPN: NSYTRV42SF6LD
- PPN: SCH-NSYTRV42SF6LD
CAD
$41.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric Linergy TR Fused Disconnect Terminal Block is a reliable component for managing circuit protection, specifically designed to accommodate 6.3x32 mm fuses. With its robust black construction, this terminal block not only ensures efficient connectivity but also enhances the safety of electrical installations by enabling easy disconnection. It is an essential addition to any automation and control system, providing reliable performance in various applications within terminal blocks and accessories.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 500 V EN/IEC 60947-7-1, 600 V cURus, 600 V CSA
- Fuse Size
- 6.3 x 32 mm
- Height
- 60.5 mm (2.38 in)
- Number of Terminals
- 2
- Connections - Terminals
- 1 x screw terminal upstream, 1 x screw terminal downstream
- Cable Cross Section
- 0.5-16 mm², flexible without cable end, solid
- Nominal Cross Section
- 16 mm² (0.02 in²)
- Flame Retardance
- V0 0.8 mm UL 94
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093, VDE 0303-T30
- Dielectric Strength
- 1000 V IEC 60243-1
- Light Indicator Voltage
- 12-30 V
- Mercury Free
- Yes
- EU RoHS Directive
- Compliant
- Reach Free of SVHC
- Yes
- Ambient Air Temperature for Operation
- -40 to 130 °C (-40 to 266 °F)
- Color
- Black
Rated Current10 A EN/IEC 60947-7-1, 10 A cURus, 10 A CSA
Length79 mm (3.11 in)
Width10.2 mm (0.40 in)
Connection PositionSideways
Tightening Torque0.6-0.8 N.m (5.31-7.08 lbf.in)
Wire Stripping Length9 mm (0.35 in)
MaterialPolyamide 6/6 (insulating case)
Dielectric Loss0.01 at 1 MHz IEC 60250, VDE 0303-T4
Resistivity10000 MΩ·m IEC 60093, VDE 0303-T30
Creep Resistance500 CTI (> 400 kB) IEC 60093, VDE 0303-T30
Terminal Block TypeFused disconnect
Product CertificationsCSA, cURus, EAC
China RoHSPro-active declaration (out of China RoHS legal scope)
Halogen Content PerformanceHalogen free plastic parts
Toxic Heavy Metal FreeYes
Country of OriginTurkey
