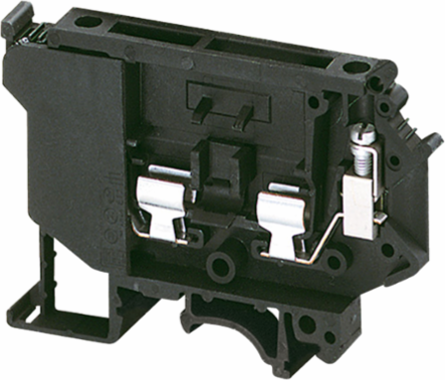

Schneider Electric NSYTRV42SF5 Linergy TR Fused Disconnect Terminal Block, 4mm², 72.5mm Length, Black
- MPN: NSYTRV42SF5
- PPN: SCH-NSYTRV42SF5
CAD
$17.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).
Documentation & Downloads
Specifications
Key Specifications
- Terminal Block Type
- fused disconnect
- Product Name
- Linergy TR
- Range
- Linergy
- Terminal Block Level
- 1
- Quantity Per Set
- set of 50
- Device Application
- protection
Product Or Component Typeterminal block
Length72.5 mm
Mounting Modeclip-on
Nominal Cross Section4 mm²
Colourblack
Device Short NameTRV
Complementary
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Height
- 56.5 mm
- Connections - Terminals
- 1 x screw terminal upstream || 1 x screw terminal downstream
- Connection Position
- sideways
- Tool Type
- connection screwdriver || disconnection screwdriver
- Flame Retardance
- V0 0.8 mm UL 94
- Resistivity
- 10000 Ω.cm IEC 60093 || 10000 Ω.cm VDE 0303-T30
- Material
- polyamide 6/6: insulating case
- Width
- 8.2 mm
- Tightening Torque
- 0.5-0.8 N.m
- [In] Rated Current
- 6.3-6.3 A EN/IEC 60947-7-1 || 12-12 A cURus || 6.3-6.3 A CSA
- [Ue] Rated Operational Voltage
- 500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA
Fuse Size5 x 20 mm
Number Of Terminals2
Cable Cross Section0.2-4 mm², flexible without cable end || 0.2-4 mm², solid or flexible with cable end
Number Of Measurement Input0
Net Weight18.3 g
Wire Stripping Length8 mm
Dielectric Constant3.7 at 1 MHz
Surface Resistance1000 MOhm IEC 60093 || 1000 MOhm VDE 0303-T30
Range CompatibilityPrisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Product CompatibilitySpacial enclosures
Creep Resistance500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Environment
- Product Certifications
- cURus || CSA || EAC
- Dielectric Strength
- 1000 V IEC 60243-1
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2309018EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free plastic parts product
