Linergy TR Terminal Block, 2.5mm2, 24A, Grey, 50 Units
Schneider Electric

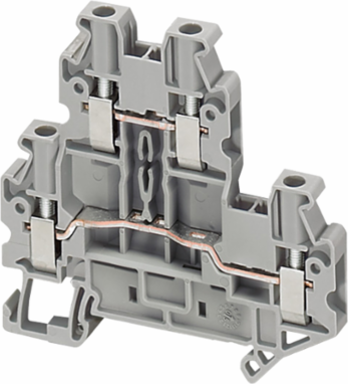

Schneider Electric NSYTRV24D Linergy TR Terminal Block, 2.5mm2, 24A, Grey, 50 Units

  • MPN: NSYTRV24D
  • PPN: SCH-NSYTRV24D
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $7.11

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 500V conforming to EN/IEC 60947-7-1 and 352V conforming to ATEX Exe II Ex II 2 GD. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/cURus and 20A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Germany, United States

    Physical Attributes

    Color
    Gray
    Wire Stripping Length9 mm

    Complementary Attributes

    Line Rated Current
    24-24 A EN/IEC 60947-7-120-20 A UL, 20-20 A CSA

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Cable Cross Section
    0.14-4 mm², flexible without cable end0.14-4 mm², solid with cable end0.2-2.5 mm², flexible with cable end, 0.14-4 mm², solid without cable end
    Dielectric Loss
    0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
    Resistivity
    10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
    Tool Type
    connection screwdriver, disconnection screwdriver
    [Ue] Rated Operational Voltage
    600 V CSA500 V EN/IEC 60947-7-1, 600 V UL
    Carbon Footprint Of The Distribution Phase [A4]
    0.001985458, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.001240883
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    4 kg CO2 eq., 4.4787
    Local Publishable Date
    2026-06-27
    Stocking Flag
    Y
    Use Carbon Footprint
    4.4787
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    2518
    China Rohs In Scope
    No
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Connection Position
    sideways
    Dielectric Constant
    3.7 at 1 MHz
    Energy Efficiency Optimized
    False
    Mounting Mode
    clip-on
    Number Of Terminals
    2
    Product Name
    Linergy TR
    Quantity Per Set
    set of 50
    Range Of Product
    Linergy
    Software Version
    v5.9.4
    Terminal Block Level
    2
    Tightening Torque
    0.5-0.6 N.m
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm², a rated voltage 690 V.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; GE
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %
    46
    Length Total
    69.9 mm
    Accessory / Separate Part Category
    connection accessory
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    Yes
    Warranty (In Months)
    18
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    4.4787
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    48.232
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    136.02
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    114.1
    Customs Code
    8536507000
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
    Materialpolyamide 6/6: insulating casecopper alloy: connector and screw, copper alloy: commoning linkchromium-nickel steel: spring
    Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
    Certificate AgencyCSA, UL, DNV, GL
    Connections - Terminals1 x screw terminal upstream M3), 1 x screw terminal downstream M3)
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.041881506, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.091988906
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility Codeterminal block
    Device Short NameTRV
    Dielectric Strength1000 V IEC 60243-1
    Flame RetardanceV0 0.8 mm UL 94
    Nominal Cross Section2.5 mm²
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeterminal block
    RangeLinergy
    ReturnabilityYes
    Sustainable PackagingYes
    Terminal Block Typepassthrough
    Total Lifecycle Carbon Footprint5 kg CO2 eq.
    Pep CodeENVPEP2309018EN
    Pep Verification Date2023-12-03
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal65 mm
    Width Nominal5.2 mm
    Halogen-free StatusHalogen free plastic parts product
    Package Weight(Lbs)15.000 g
    Take-backNo
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]4.4727
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]114.1
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]6.6592
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]21.911
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]21.911

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Silicon Free
    Yes
    Environmental Disclosure
    ENVPEP2309018EN
    Halogen Content Performance
    Halogen free plastic parts product
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-12-03
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
    Halogene PerformanceHalogen free plastic parts product
    Mercury FreeYes
    Carbon Footprint4.615796753
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Product CompatibilitySpacial enclosures
    Pep CodeENVPEP2309018EN
