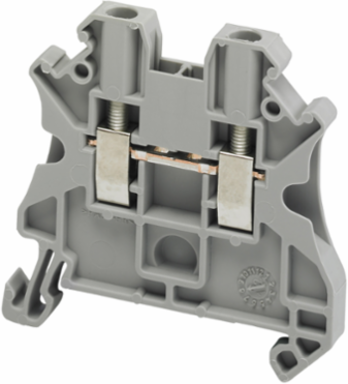

Schneider Electric NSYTRV22 Terminal Block Linergy TR Grey 2.5mm² 24A 600V Set of 50
- MPN: NSYTRV22
- PPN: SCH-NSYTRV22
CAD
$3.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/cURus and 22A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Documentation & Downloads
Specifications
Key Specifications
- Terminal Block Type
- passthrough
- Product Or Component Type
- terminal block
- Length
- 47.7 mm
- Mounting Mode
- clip-on
- Nominal Cross Section
- 2.5 mm²
- Colour
- grey
Accessory / Separate Part Categoryconnection accessory
Product NameLinergy TR
RangeLinergy
Terminal Block Level1
Quantity Per Setset of 50
Device Short NameTRV
Complementary
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Number Of Terminals
- 2
- Number Of Measurement Input
- 2
- Net Weight
- 8.2 g
- Connections - Terminals
- 1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
- Resistivity
- 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
- Cable Cross Section
- 0.14-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², solid without cable end || 0.14-4 mm², flexible without cable end
- Surface Resistance
- 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
- Range Compatibility
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys || Thalassa Thalassa TBP || Thalassa Thalassa TBS
- Product Compatibility
- Spacial enclosures
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Height47.5 mm
Connection Positionsideways
Tool Typeconnection screwdriver || disconnection screwdriver
Flame RetardanceV0 0.8 mm UL 94
Wire Stripping Length9 mm
Dielectric Constant3.7 at 1 MHz
Materialpolyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
Width5.2 mm
Tightening Torque0.5-0.6 N.m
[In] Rated Current24-24 A EN/IEC 60947-7-1 || 22-22 A ATEX Exe II Ex II 2 GD || 20-20 A cURus || 20-20 A CSA
[Ue] Rated Operational Voltage1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
Environment
- Product Certifications
- LR || EAC || VDE || cURus || DNV || CSA || IEC-Ex || ATEX || GL
- Dielectric Strength
- 1000 V IEC 60243-1
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2309018EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free plastic parts product
