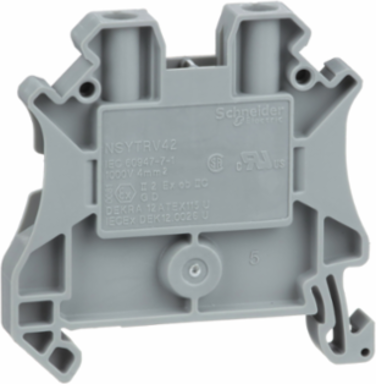

Schneider Electric NSYTRV42 Linergy TR Terminal Block, 4mm2, Passthrough, 2 Points, Set of 50
- MPN: NSYTRV42
- PPN: SCH-NSYTRV42
CAD
$3.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).
Features
- Designed as a standard single-level, pass-through terminal block from the Linergy TR range, this unit features a 1x1 configuration providing 2 distinct connection points. For control panel builders and industrial automation technicians, this layout delivers a clean, high-density electrical distribution junction, simplifying side-by-side terminal expansion without multiplying physical layout clutter.
- Engineered with an extensive insulation barrier, this terminal block is rated for operational ceilings up to 600V under cURus and CSA standards, and up to 1000V matching rigid EN/IEC 60947-7-1 industrial criteria. It carries a continuous line rated current of 30 Amps (cURus/CSA) or 32 Amps (IEC),
- Molded from premium Polyamide 6/6 (Nylon) material carrying a strict UL 94 V0 flame retardancy rating, the housing is engineered to operate across an extreme ambient thermal span from -40 C up to 130 C. This chemical and heat resistance prevents localized surface tracking and mechanical casing brittle-fractures, ensuring long-term signal insulation inside heavily packed Spacial or PrismaSet enclosures.
- Boasting an ultra-slender profile width of just 6.2 mm (0.24 inches), a height of 47.5 mm, and a length of 47.7 mm, this compact block optimizes critical horizontal panel space. The base is engineered with a standard snap-on clip mechanism that locks securely onto 35mm DIN rails, enabling swift grid assembly and firm resistance against physical shift caused by machine vibration.
- Equipped with rugged M3 screw-clamp termination blocks, this unit requires a factory-certified tightening torque specification spanning 5.31 to 7.08 lbf-in (0.6 to 0.8 N-m). For optimal retention, wires must be stripped to a clean 0.35 inches (9 mm), and tightened with a calibrated connection screwdriver to prevent conductor cold-flow deformation and eliminate localized resistance hot spots.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Germany, United States
Physical Attributes
- Color
- Gray
Wire Stripping Length9 mm
Complementary Attributes
- Line Rated Current
- 32-32 A EN/IEC 60947-7-130-30 A CSA, 30-30 A UL
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Cross Section
- 0.2-6 mm², flexible without cable end0.14-6 mm², solid with cable end0.2-4 mm², flexible with cable end, 0.2-6 mm², solid without cable end
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
- Resistivity
- 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
- Tool Type
- connection screwdriver, disconnection screwdriver
- [Ue] Rated Operational Voltage
- 1000 V EN/IEC 60947-7-1600 V CSA, 600 V UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.001163839, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.000727383
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 6 kg CO2 eq., 5.932823377
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- terminal block
- Device Short Name
- TRV
- Dielectric Strength
- 1000 V IEC 60243-1
- Flame Retardance
- V0 0.8 mm UL 94
- Nominal Cross Section
- 4 mm²
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- terminal block
- Range
- Linergy
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Terminal Block Type
- passthrough
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Pep Code
- ENVPEP2309018EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 47.5 mm
- Width Nominal
- 6.2 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 9.000 g
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Materialpolyamide 6/6: insulating casecopper alloy: connector and screw, copper alloy: commoning linkchromium-nickel steel: spring
Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
Certificate AgencyVDE, GL, CSA, DNV
Connections - Terminals1 x screw terminal upstream M3), 1 x screw terminal downstream M3)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.024550181, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.053922233
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2518
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Positionsideways
Dielectric Constant3.7 at 1 MHz
Energy Efficiency OptimizedFalse
Mounting Modeclip-on
Number Of Terminals2
Product NameLinergy TR
Quantity Per Setset of 50
Range Of ProductLinergy
Software Versionv5.9.4
Terminal Block Level1
Tightening Torque0.6-0.8 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionConnect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm², a rated voltage 690 V.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; GE
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %46
Length Total47.7 mm
Accessory / Separate Part Categoryconnection accessory
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2309018EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Carbon Footprint6.013187014
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product CompatibilitySpacial enclosures
Pep CodeENVPEP2309018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- terminal block
Range Of ProductLinergy
ETIM
- ETIM 8
- EC000897
ETIM 9EC000897
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
