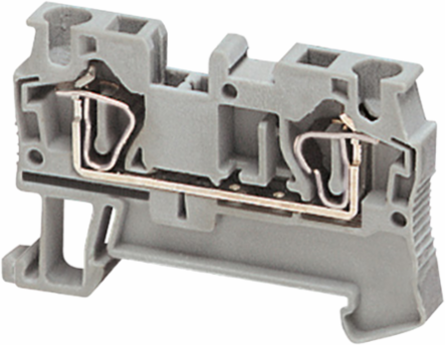

Schneider Electric NSYTRR42 Linergy TR Terminal Block, 4mm2, 32A, Set of 50, Grey
- MPN: NSYTRR42
- PPN: SCH-NSYTRR42
CAD
$3.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 32A conforming to EN/IEC 60947-7-1 and 30A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Physical Attributes
- Color
- Gray
Wire Stripping Length10 mm
Complementary Attributes
- Line Rated Current
- 32-32 A EN/IEC 60947-7-130-30 A CSA, 30-30 A UL
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Cross Section
- 0.08-4 mm², solid without cable end, 0.08-4 mm², flexible without cable end, 0.08-6 mm², solid with cable end, 0.2-4 mm², flexible with cable end
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
- Resistivity
- 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
- Tool Type
- connection flat screwdriver, disconnection flat screwdriver
- [Ue] Rated Operational Voltage
- 600 V CSA800 V EN/IEC 60947-7-1, 600 V UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.001032925, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.000928488
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 6 kg CO2 eq., 5.932823377
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Weee Applicability
- Component
- Weee Exclusion Rationale
- Component not in scope – non independent function
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2518
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- terminal block
- Device Short Name
- TRR
- Dielectric Strength
- 1000 V IEC 60243-1
- Flame Retardance
- V0 0.8 mm UL 94
- Nominal Cross Section
- 4 mm²
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- terminal block
- Range
- Linergy
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Terminal Block Type
- passthrough
- Pep Code
- ENVPEP2309017EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 36.5 mm
- Width Nominal
- 6.2 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 8.000 g
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Materialpolyamide 6/6: insulating casecopper alloy: connector and screw, copper alloy: commoning linkchromium-nickel steel: spring
Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
Certificate AgencyVDE, UL, CSA, DNV, GL
Connections - Terminals1 x spring terminal upstream, 1 x spring terminal downstream
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.020298673, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0 kg CO2 eq., 0.048644342
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Positiontop
Dielectric Constant3.7 at 1 MHz
Energy Efficiency OptimizedFalse
Mounting Modeclip-on
Number Of Terminals2
Product NameLinergy TR
Quantity Per Setset of 50
Range Of ProductLinergy
Software Versionv5.9.4
Terminal Block Level1
Total Lifecycle Carbon Footprint6 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionConnect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 20.5 A, a rated cross section 2.5 mm2, a rated voltage 550 V, a Short-time withstand current 0.3 kA.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; GE
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %37
Length Total56 mm
Accessory / Separate Part Categoryconnection accessory
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2309017EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2309017EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint6.003727804
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilitySpacial enclosures
