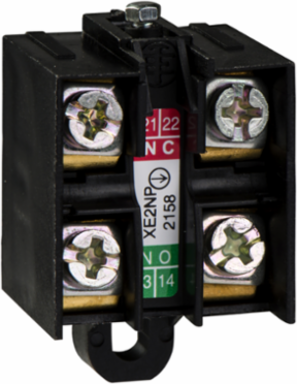

Telemecanique Sensors XE2NP2158 Limit switch contact block, Limit switches XC Standard, 1NC+1 NO, slow break, make before break
- MPN: XE2NP2158
- PPN: TES-XE2NP2158
- UNSPSC: 39121522
CAD
$81.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch contact block, Limit switches XC Standard, 1NC+1 NO, slow break, make before break
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch contact block
- Number Of Poles
- 2
Contacts Type And Composition1 NO + 1 NC
Contact Operationslow-break, break before make
Device Short NameXE2N
Complementary
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Short-Circuit Protection10 A cartridge fuse gG
Minimum Actuation Speed6 m/min
Contacts Materialsilver plated contacts
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
