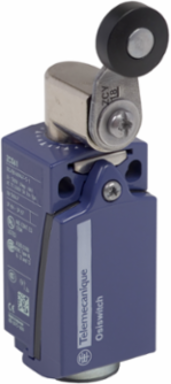

Telemecanique Sensors XCKD6118G11 Limit switch, Limit switches XC Standard, lmt 240 V AC, 3 A, metal, XCKD

This XCKD compact format (CENELEC EN 50047) limit switch has a thermoplastic roller lever arm head and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is ideal for all industrial machines like packaging, materials handling, conveyors, machining, food and beverage. It has 1 normally closed and 1 normally open, form Zb, slow break, break before make contacts. This limit switch has a A300 and Q300 contact ratings and has a conventional enclosed thermal current rating of 10A. It is furnished with screw clamp terminals for electrical connection. The spring return mechanism with a thermoplastic roller operating lever supports lateral approach and switch actuation in CW and CCW position, from left or right. It is an IP66, IP67 and NEMA 1/2/4/6/12/13 rated product. Limit switch has one entry tapped for Pg11 cable gland. This rotary head limit switch has dimensions of 1.22inch (Width) x 1.18inch (Depth) x 2.56inch (Height) and weighs 0.50lb. It complies with UL 508, CSA C22.2 No.14, EN/IEC 60947.-5-1, EN/IEC 60204-1, CCC standards and is also RoHS compliant. Limit switch has UL Listed, CSA certified and CCC certifications. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
