Hubbell Wiring Device-Kellems

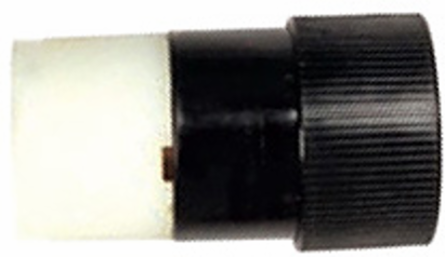

Hubbell Wiring Device-Kellems L1430C Locking Connector Body 30A 125/250V NEMA L14-30R, Supertough Nylon

Locking Connector Body 30A 125/250V NEMA L14-30R, Supertough Nylon
  • MPN: L1430C
  • UPC: 783585650067
  • PPN: HBL-L1430C

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$128.49/ EA

Description

Locking Connector Body 30A 125/250V NEMA L14-30R, Supertough Nylon

Specifications

Specifications

Overload
Minimum 4.8 times rated current for 100 cycles.
Locking Device NEMA Configuration
L14-30R
Contacts/Blade Material
High Performance Copper Alloy
Max Working Voltage
600V AC, 250V DC
Locking Device Wiring Scheme
3 Pole, 4 Wire Grounding
Locking Device Listings and Approvals
UL Listed, CSA Certified
Locking Device Rating
30A, 125/250V
Operating Temperatures
Maximum Continuous 60 deg C, minimum -40 deg c. (w/o impact).
Product Identification
Ratings and NEMA identification are permanently marked on device.
Blade/Contact Holder
Impact Modified Nylon
Terminal Identification
Terminals identified in accordance with UL 498 (Brass, White, Green).
FlammabilityHB or Better per UL 94 or CSA 22.2 No. 17
Locking Device ColorBlack & White
Dielectric VoltageWithstands 3,500V per UL498
Current InterruptingCertified for current interrupting at full rated current.
FeaturesNylon Construction, Visible NEMA Ratings, Captive Assembly Screws
BodySupertough Nylon
Terminal Accommodation#18 to #8 AWG Flexible Cord
Temperature RiseMaximum 30 deg C. temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498
SELECTSPEC Product TypeLocking Devices
Locking Device ProductConnector Body
