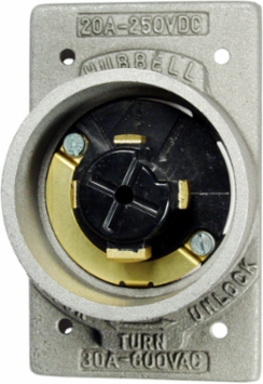

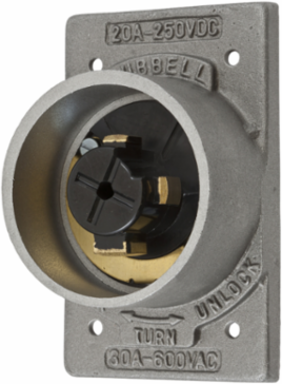

Hubbell Wiring Device-Kellems HBL20418 Industrial Flanged Inlet, 3-Pole 4-Wire, 30A 600V AC, 20A 250V DC
- MPN: HBL20418
- UPC: 783585017457
- PPN: HBL-HBL20418
- UNSPSC: 39121406
CAD
$296.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Hubbellock®, Industrial, Flanged Inlet, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Black phenolic interior, Aluminum housing, Non-NEMA, Screw Terminal, FS/FD Box Mounting, Metallic
Features
- Molded-in male contacts are resistant to damage and provide a consistently positive connection
- Insulated non-metallic housing enhances safety and abuse resistance
- Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
- Metallic weather protective spring loaded cover provides protection from moisture and dust
- FS/FD Mounting
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 4.56 in x 2.84 in x 2.4 in
- Industry Standard(s)
- Certified to CSA Standard;Listed to UL Standard
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Environmental - Flammability - UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Wires
- 4-Wire
- Special Features
- FS/FD Mounting
- Type
- Flanged Inlet
- Wire Size
- #10 AWG to #6 AWG
- Weight
- 0.85 lb.
- Connectivity
- Back Wired Screw Terminals
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- H/LOCK INLET, 30A 600V, 3P4W
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A170
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.800 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating30 A
Height2.4 in
Length4.56 in
Amperage Rating30 A
ColorMetallic
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles3-Pole
Size4.56 in x 2.84 in x 2.4 in
StandardCertified to CSA Standard;Listed to UL Standard
Voltage Rating250 VDC/600 VAC
Voltage Rating Description250 VDC/600 VAC
Width2.84 in
Display SizeStandard Sized Product
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number20418
Material - Mounting HardwareScrew Mounting
MaterialAluminum, Cast
BOX SIZE5.400x11.800x9.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585017457
Case Weight8.400 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
