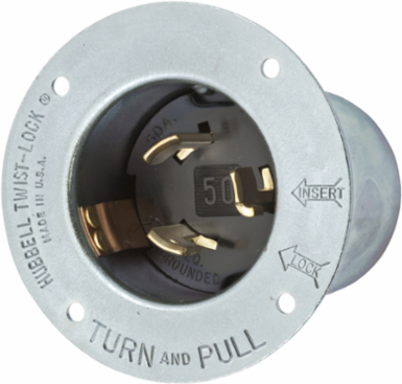

Hubbell Wiring Device-Kellems HBL3777 Twist-Lock Flanged Inlet 50A 250V 600V AC 2-Pole 3-Wire Metallic
- MPN: HBL3777
- UPC: 783585236490
- PPN: HBL-HBL3777
- UNSPSC: 39121406
CAD
$254.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 250V, 600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior, Metallic
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.17 in x 3.50 in x 2.62 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Number of Poles
- 2-Pole
- Phase
- Three Phase
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #8 AWG to #4 AWG
- Weight
- 0.85 lb.
- General Literature Asset 1 Display Text
- 50 Amp Twist-Lock® Devices
- Display Size
- Standard Sized Product
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 3777
- Material - Mounting Hardware
- Screw Mounting
- Material
- Steel, Zinc Plated
- BOX SIZE
- 5.600x20.600x10.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585236490
- Case Weight
- 8.250 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating50 A
Height2.62 in
Length2.17 in
Amperage Rating50 A
ColorMetallic
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Wires3-Wire
Size2.17 in x 3.50 in x 2.62 in
StandardCertified to CSA C22.2 No.42;Listed to UL 498
Voltage Rating250 VDC/600 VAC
Voltage Rating Description250 VDC/600 VAC
Width3.50 in
ConnectivityPressure Terminal Screws
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG INLT, 50A 250VDC/600VAC, 2P3W
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A150
Current Rating50 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- No
