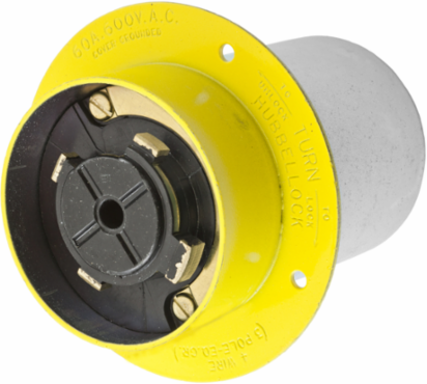

Hubbell Wiring Device-Kellems HBL26422 Hubbellock Flanged Inlet 60A 600V AC 3-Pole 4-Wire Yellow
- MPN: HBL26422
- UPC: 783585017617
- PPN: HBL-HBL26422
- UNSPSC: 39121406
CAD
$760.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Hubbellock®, Industrial, Flanged Inlet, 60A 600V, 3-Pole 4-Wire Grounding, Black phenolic interior with steel housing and flange, Non NEMA, Screw Terminal, Yellow
Features
- Molded-in male contacts are resistant to damage and provide a consistently positive connection
- Color coded metallic housing enhances safety and abuse resistance
- Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.95 in x 4.12 in x 4.12 in
- Industry Standard(s)
- Certified to CSA Standard;Listed to UL Standard
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accomodation - #8 AWG - #4 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Wires
- 4-Wire
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #8 AWG to #4 AWG
- Weight
- 1.8 lb.
- Connectivity
- Pressure Terminal Screws
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- H/LOCK FLGD INLET, 3P4W, 60A 600V
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A170
- Current Rating
- 60 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.85 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating60 A
Height4.12 in
Length3.95 in
Amperage Rating60 A
ColorYellow
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles3-Pole
Size3.95 in x 4.12 in x 4.12 in
StandardCertified to CSA Standard;Listed to UL Standard
Voltage Rating600 V
Voltage Rating Description600 V
Width4.12 in
Display SizeStandard Sized Product
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number26422
Material - Mounting HardwareScrew Mounting
MaterialSteel, Zinc Plated
BOX SIZE6.700x12.600x9.400 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585017617
Case Weight9.100 lb.
Lowest Level UOMEach
