Bryant

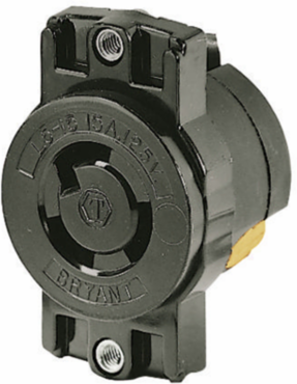

Bryant 7061575 Industrial Panel Mount Receptacle, 15A 250V, 2-Pole 3-Wire, 1.75 Inch Mounting

Industrial Panel Mount Receptacle, 15A 250V, 2-Pole 3-Wire, 1.75 Inch Mounting
  • MPN: 7061575
  • UPC: 781786616349
  • PPN: HBL-7061575
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$60.48/ EA

Description

Locking Devices, Industrial, Panel Mount Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, L6-15R, Screw Terminal, Black, 1.75" Mounting

Features

  • Panel Mount Receptacle
  • 15A 250V
  • 2-Pole 3-Wire Grounding
  • L6-15R
  • Screw Terminal
  • 1.75" Mounting

Specifications

Specifications

Country of Origin
United States
Height
1.09 in
Amperage Rating
15 A
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number of Poles
2-Pole
Phase
Single Phase
Special Features
1.75" Mounting
Voltage Rating
250 V
Voltage Rating Description
250V
Connectivity
Terminal Screws
Nema Rating
L6-15R
Number Of Wires
3-Wire
Class Code
A08
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A08A172
Current Rating
15 A
Base Unit of Measure
EA
Carton - Gross Weight per Pack
1.150 lb.
Carton - Pack Description
Carton
Carton - Total Units
10
Lowest Level UOM
Each
Dimensions2.38 in x 1.41 in x 1.09 in
Length2.38 in
ApplicationExtra Heavy Duty Industrial Specification Grade
NEMA RatingL6-15R
Number of Wires3-Wire
Size2.38 in x 1.41 in x 1.09 in
TypeReceptacle
Wire Size#14 AWG to #8 AWG
Width1.41 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StylePanel Mount
Description - InvoiceLKG PANEL RECP, 15A 250V, 1.75" MT,BK
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
BOX SIZE5.300x14.600x6.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786616349
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes

Downloads
