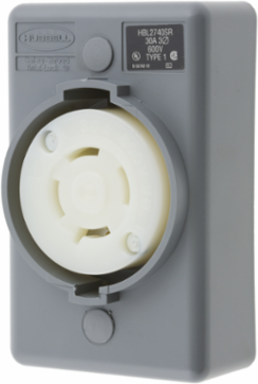

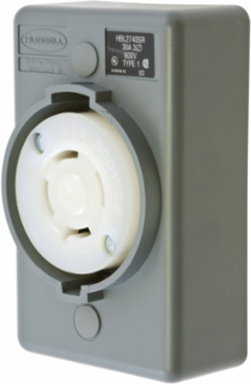

Hubbell Wiring Device-Kellems HBL2740SR Twist-Lock® Surface Mount Receptacle, 30A 3-Pole 4-Wire, 600V AC
- MPN: HBL2740SR
- UPC: 783585234908
- PPN: HBL-HBL2740SR
- UNSPSC: 39121406
CAD
$120.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Safety-Shroud®, Surface Mount Receptacle, One Gang, 30A 3-Phase Delta 600V AC, 3-Pole 4- Wire Grounding, NEMA L17-30R, Screw Terminal, Gray
Features
- Accepts Hubbell shrouded and standard NEMA locking plugs
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
- Surface Mount
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 4.56 in x 2.84 in x 1.71 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial Shrouded
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Special Features
- Surface Mount
- Type
- Receptacle
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.5 lb.
- Engineering Drawing 1 Display Text
- HBL2740SR AutoCAD Drawing
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Operating Temperature
- -40°C to 85 °C
- Description - Invoice
- LKG S/SHRD RCPT, L17-30R, SURF MT, GY
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Valox™
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Height1.71 in
Length4.56 in
Amperage Rating30 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL17-30R
Number of Wires4-Wire
Size4.56 in x 2.84 in x 1.71 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating600 V
Voltage Rating Description600 V
Width2.84 in
ConnectivityBack Wired Screw Terminals
Nema RatingL17-30R
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A120
Current Rating30 A
Number of Gang(s)1-Gang
BOX SIZE7.305x10.745x8.805 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585234908
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
