Bryant

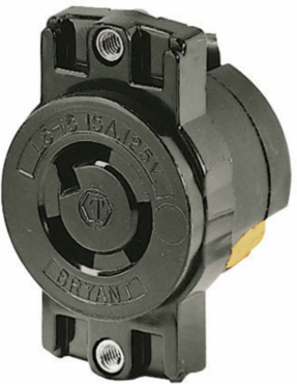

Bryant 4712BRY Industrial Panel Mount Receptacle, 15A 125V, 2-Pole 3-Wire, 1.94" Mounting Hole

Industrial Panel Mount Receptacle, 15A 125V, 2-Pole 3-Wire, 1.94" Mounting Hole
  • MPN: 4712BRY
  • UPC: 781786616127
  • PPN: HBL-4712BRY
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$77.98/ EA

Description

Locking Devices, Industrial, Panel Mount Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screw Terminal, Black, 1.94" Mounting Hole Center

Features

  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • All terminals are back and side wired
  • Brass mounting strap with stainless steel grounding clip
  • 1.94" Mounting

Specifications

Specifications

Country of Origin
United States
Height
1.09 in
Amperage Rating
15 A
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number of Poles
2-Pole
Phase
Single Phase
Special Features
1.94" Mounting
Voltage Rating
125 V
Voltage Rating Description
125V
Connectivity
Terminal Screws
Nema Rating
L5-15R
Number Of Wires
3-Wire
Class Code
A08
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A08A172
Current Rating
15 A
Base Unit of Measure
EA
Carton - Gross Weight per Pack
1.15 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Case Weight
3.000 lb.
Lowest Level UOM
Each
Dimensions2.38 in x 1.41 in x 1.09 in
Length2.38 in
ApplicationExtra Heavy Duty Industrial Specification Grade
NEMA RatingL5-15R
Number of Wires3-Wire
Size2.38 in x 1.41 in x 1.09 in
TypeReceptacle
Wire Size#14 AWG to #8 AWG
Width1.41 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StylePanel Mount
Description - InvoiceSGL LKG PAN RCPT, 15A 125V, 1.94" CTR
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
BOX SIZE3.400x8.700x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786616127
Case - Total Units30 EA
Each - Pack DescriptionEach

Certifications
