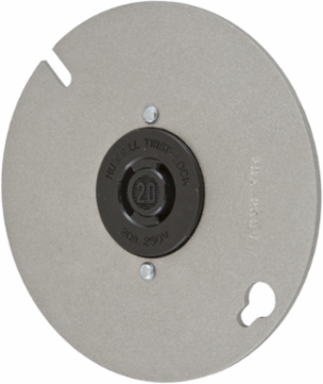

Hubbell Wiring Device-Kellems HBL7217B Twist-Lock Flush Receptacle, 20A 250V, 2-Pole, Mounted to 4 Inch Box Cover
- MPN: HBL7217B
- UPC: 783585237114
- PPN: HBL-HBL7217B
- UNSPSC: 39121406
CAD
$54.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 250V, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black, Mounted to 4" Round Box Cover.
Features
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Face color coding by voltage facilitates locating and mating of proper devices
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Mounted to 4" Round Box Cover
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 4.12 in x 1.29 in x 1.29 in
- Horsepower - Maximum
- 2
- Length
- 4.12 in
- Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- L2-20R
- Number of Wires
- 2-Wire
- Size
- 4.12 in x 1.29 in x 1.29 in
- Standard
- Fed.Spec.W-C-596
- Voltage Rating
- 250 VAC
- Voltage Rating Description
- 250 VAC
- Width
- 1.29 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- CAT#7210B ON ROUND 4" BOX CVR
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.850 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height1.29 in
Industry Standard(s)Fed.Spec.W-C-596
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesMounted to 4" Round Box Cover
TypeReceptacle
Wire Size#16 AWG to #8 AWG
Weight0.30 lb.
ConnectivityScrew Terminals
Nema RatingL2-20R
Number Of Wires2-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number7217B
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE4.995x11.995x9.125 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585237114
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
