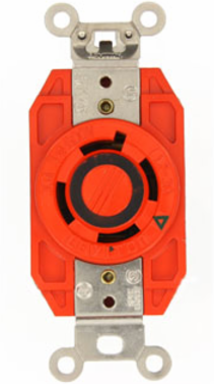

Leviton 2740-IG 30 Amp 600 Volt NEMA L17-30R Flush Mount Locking Receptacle, Industrial Grade
Leviton 2740-IG 30 Amp 600 Volt NEMA L17-30R Flush Mount Locking Receptacle, Industrial Grade
- MPN: 2740-IG
- UPC: 078477046210
- PPN: LEV-2740-IG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$110.04/ EA
Description

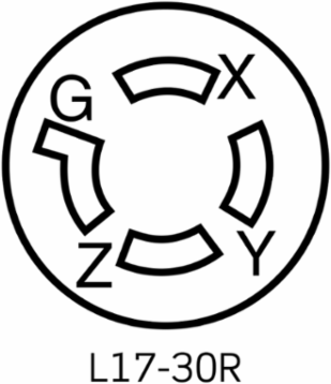

30 Amp, 600 Volt 3-Phase, NEMA L17-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
UL Fed SpecW-C-596
Material Specifications
- Base Material
- Valox
- Color
- Orange
- Face Material
- Valox
- Ground Contacts
- Brass
- Line Contacts
- Brass
- Terminal Clamps
- Zinc-Plated Brass
Body MaterialValox 357
Cover MaterialValox 357
Ground ClipsNickel-Plated Brass
Grounding ScrewBrass
Strap MaterialNickel-Plated Brass
Terminal ScrewsChromated Brass
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 14-8 AWG
- Termination
- Back & Side
Screw Terminal Torque14-18 in-lbs
Terminal IDMarked on Device
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- V-0-Max
FeatureIsolated Ground
Warranty
- Warranty
- Limited Lifetime Warranty
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 4
Current LimitingFull Rated Current
GroundingIsolated Ground
Pole3
Voltage600 VAC
Downloads
