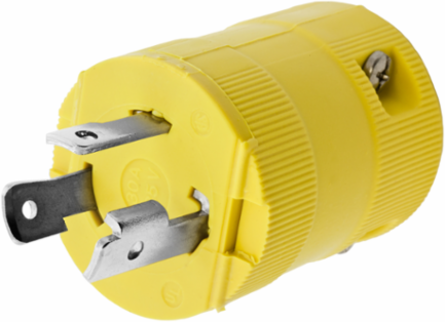

Hubbell Wiring Device-Kellems HBL26CM11V Twist-Lock® Corrosion Resistant Plug 30A 125V AC 2-Pole Yellow Nylon
- MPN: HBL26CM11V
- UPC: 783585808215
- PPN: HBL-HBL26CM11V
- UNSPSC: 39121402
CAD
$22.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Corrosion Resistant Valise® Plug, 30A, 125V AC, 2 Pole, 3 Wire Grounding, NEMA L5-30P, Corrosion resistant, Yellow nylon
Features
- Powerful cord grip prevents conductor slippage and strain on wiring terminals
- Totally insulated impact and crush resistant nylon body

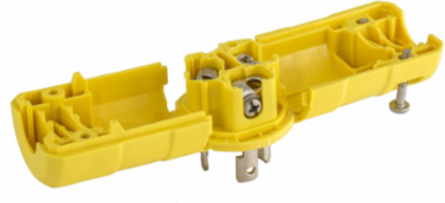

- Unique patented corrosion resistant clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
- Corrosion Resistant
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 2.5 in x 1.78 in x 1.78 in
- Horsepower - Maximum
- 2
- Length
- 2.5 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial/Marine
- Cord Type
- All Listed Portables
- NEMA Rating
- L5-30P
- Number of Wires
- 3-Wire Grounding
- Size
- 2.5 in x 1.78 in x 1.78 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Wire Size
- #18 AWG to #10 AWG
- Weight
- 0.20 lb.
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L5-30P
- Number Of Wires
- 3-Wire Grounding
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 26CM11V
- Cord Range
- 0.590"-0.930" (15.0-23.6)
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Height1.78 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical-Current Interrupting - Certified for full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact);Environmental - Moisture Resistance - IP20 Suitability
Amperage Rating30 A
ColorYellow
Environmental ConditionsCorrosion Resistant
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesCorrosion Resistant
Voltage Rating125 VAC
Voltage Rating Description125 VAC
Width1.78 in
ConnectivityPressure Terminal Screws
Display SizeStandard Sized
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG VAL PLUG, CM, 30A 125V, L5-30P, YL
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A110
Material - Mounting HardwareCord Mounted
MaterialNylon
BOX SIZE4.685x15.745x9.305 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585808215
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Contact Manufacturer
ListingsUL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
