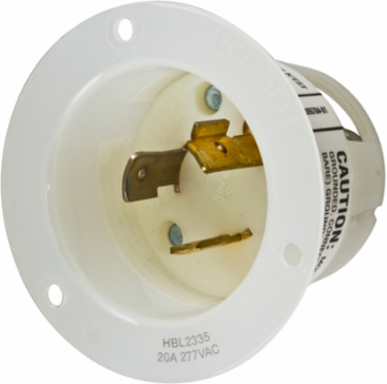

Hubbell Wiring Device-Kellems HBL2335ST EdgeConnect™ Twist-Lock® Flanged Inlet Locking Device, 20A 277V AC, 2-Pole 3-Wire Grounding
- MPN: HBL2335ST
- UPC: 783585719597
- PPN: HBL-HBL2335ST
- UNSPSC: 39121406
CAD
$62.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Flanged Inlet, 20A 277V AC, 2-Pole 3-Wire Grounding, L7-20P, Screwless Terminal, White
Features
- Faster termination time
- No need for torque wrench
- Strong steel spring eliminates strand relaxation
- Funnel shaped wire entry for ease of termination.
- Backwired termination for ease of installation
- EdgeConnect™ Technology, Screwless Termination
Specifications
Additional
- Amperage
- 20 A
- Poles
- 2-Pole
- Terminal Type
- Screwless Termination
- Housing Material
- Nylon
- Plunger Material
- Nylon
- Terminal Spring Clamp Material
- Spring Steel
- Current Interrupting
- Certified at full rated current
- Terminal Accommodation
- #14 AWG - #6 AWG solid, #14 AWG - #8 AWG stranded copper wire
- Moisture Resistance
- IP20
- Series
- EdgeConnect™ Twist-Lock® Series
Voltage277 V AC
Wires3-Wire Grounding
Width3.250 in
Terminal Retainer MaterialNylon
Blade MaterialCopper Alloy
Assembly Screws MaterialZinc Plated Tri-drive
Dielectric Voltage3000 V minimum
FlammabilityHB or better per UL94/CSA 22.2 No.17
Operating Temperature-40°C to 75°C
Country of OriginCN
