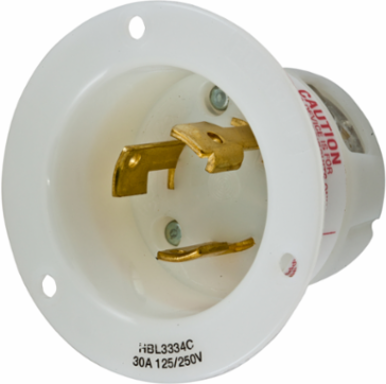

Hubbell Wiring Device-Kellems HBL3334C Locking Device 30A 125/250V Flanged Inlet 3-Pole 3-Wire
- MPN: HBL3334C
- UPC: 783585039855
- PPN: HBL-HBL3334C
- UNSPSC: 39121406
CAD
$119.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 125/250V, 3-Pole 3-Wire Non Grounding, Non-NEMA, Screw Terminal, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.88 in x 2.88 in x 2.22 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wir only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 30 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- Non-NEMA
- Number of Wires
- 3-Wire
- Size
- 2.88 in x 2.88 in x 2.22 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 125/250 VAC
- Voltage Rating Description
- 125/250 VAC
- Width
- 2.88 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG FLG-INLT, 30A 125/250V, 3P3W
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Sub Class Code
- A08A160
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.450 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 8.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Height2.22 in
Length2.88 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles3-Pole
PhaseSingle Phase
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#16 AWG to #8 AWG
Weight0.2 lb.
ConnectivityBack Wired Screw Terminals
Nema RatingNon-NEMA
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number3334C
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE3.400x12.600x6.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585039855
Case - Total Units30 EA
Each - Pack DescriptionEach
NAICS Code335931A102
