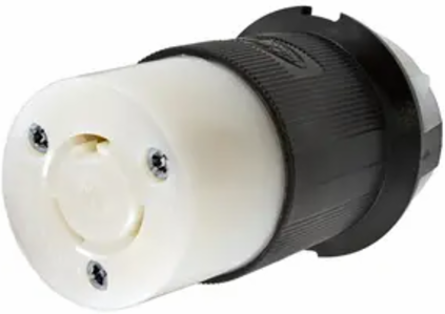

Hubbell Wiring Device-Kellems HBL3723 Twist-Lock Female Connector Body, 20A 347V AC, 2-Pole, 3-Wire Grounding
- MPN: HBL3723
- UPC: 783585046600
- PPN: HBL-HBL3723
- UNSPSC: 39121421
CAD
$42.63
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 347V AC, 2-Pole 3-Wire Grounding, NEMA L24-20R, Screw Terminal, Black and White Nylon.
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 2.26 in x 2.26 in x 3.86 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Application | Heavy Duty Industrial |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| NEMA Rating | L24-20R |
| Size | 2.26 in x 2.26 in x 3.86 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Voltage Rating | 347 VAC |
| Weight | 0.4 lb. |
| Engineering Drawing 1 Display Text | HBL3723 AutoCAD Drawing |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | L24-20R |
| Number Of Wires | 3-Wire |
| Wire Size | #16 AWG to #8 AWG |
| Description - Invoice | LKG CONN, 20A 2P3W, 347V, L24-20R, B/W |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Cable Range | 0.360 - 0.930 in |
| Material - Mounting Hardware | Cord Mounted |
| Current Rating | 20 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 12.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 30 EA |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 20 A |
|---|---|
| Height | 3.86 in |
| Length | 2.26 in |
| Amperage Rating | 20 A |
| Color | Black, White |
| Insulation | Insulated Body |
| Number of Poles | 2-Pole |
| Special Features | Standard Product |
| Type | Connector Body |
| Voltage Rating Description | 347 VAC |
| Width | 2.26 in |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A08A110 |
| Cord Range | 0.360"-0.930" (9-24) |
| Cord Diameter | 0.360-0.930 in |
| Material | Nylon |
| BOX SIZE | 7.900x12.800x9.000 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585046600 |
| Case Weight | 11.850 lb. |
| Lowest Level UOM | Each |
