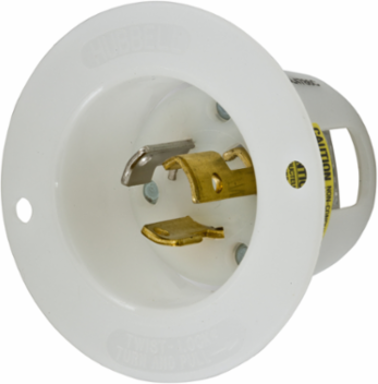

Hubbell Wiring Device-Kellems HBL4786C Twist-Lock Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire, Nylon
- MPN: HBL4786C
- UPC: 783585172156
- PPN: HBL-HBL4786C
- UNSPSC: 39121406
CAD
$53.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15P, Screw Terminal, Nylon casing, Back wired, White.
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #8-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.56 in x 2.56 in x 1.71 in
- Horsepower - Maximum
- 2
- Length
- 2.56 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 277 VAC
- Voltage Rating Description
- 277 VAC
- Width
- 2.56 in
- General Literature Asset 1 Display Text
- Insulgrip® Straight Blade and Twist-Lock® Devices
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- 22LKG FLG-INLT, 15A 277 VAC, L7-15P, WH
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 7.500 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Height1.71 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec.W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating15 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL7-15P
Number of Wires3-Wire
Size2.56 in x 2.56 in x 1.71 in
StandardCertified to CSA C22.2 No.42;Fed.Spec.W-C-596;Listed to UL 498
TypeFlanged Inlet
Wire Size#18 AWG to #10 AWG
Weight0.15 lb.
Engineering Drawing 1 Display TextHBL4786C AutoCAD Drawing
ConnectivityScrew Terminals
Nema RatingL7-15P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number4786C
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE4.048x13.428x2.798 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585172156
Case - Total Units50 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
