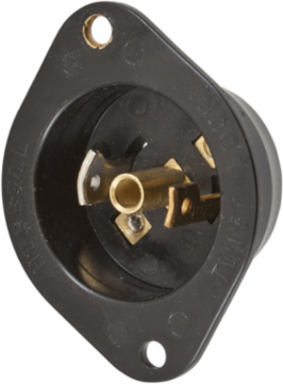

Hubbell Wiring Device-Kellems HBL7595N Midget Twist-Lock Flanged Inlet 15A 125V AC 2-Pole 3-Wire Black Nylon
- MPN: HBL7595N
- UPC: 783585237800
- PPN: HBL-HBL7595N
- UNSPSC: 39121406
CAD
$35.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Inlet, 15A 125V AC, 2-Pole 3-Wire Grounding, NEMA ML-2P, Screw Terminal, Black Nylon Flange.
Features
- Fully Insulated nylon casing with integral flange
- Black color blends in with equipment
- Standard Product
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Insulgrip® Straight Blade and Twist-Lock® Devices
- Current / Amperage Rating
- 15 A
- Height
- 0.94 in
- Length
- 2.00 in
- Amperage Rating
- 15 A
- Color
- Black
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- ML-2P
- Number of Wires
- 3-Wire
- Size
- 2.00 in x 1.63 in x 0.94 in
- Standard
- Certified to CSA C22.2 No.42;Listed to UL 498
- Type
- Flanged Inlet
- Wire Size
- #18 AWG to #14 AWG
- Weight
- 0.05 lb.
- Connectivity
- Screw Terminals
- Nema Rating
- ML-2P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 7595N
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 3.500x12.300x2.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585237800
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585237809
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginUnited States
Dimensions2.00 in x 1.63 in x 0.94 in
Industry Standard(s)Certified to CSA C22.2 No.42;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
ApplicationHeavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating125 V
Voltage Rating Description125 V
Width1.63 in
Display SizeMidget Locking
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG-INLET,MIDGET 15A 125V,ML-2P, NM
Harmonization Code8536699999
MSDS FlagNo
Sub Class CodeA08A110
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight4.650 lb.
Lowest Level UOMEach
Pallet Height47.000 in
Pallet Weight418.500 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
