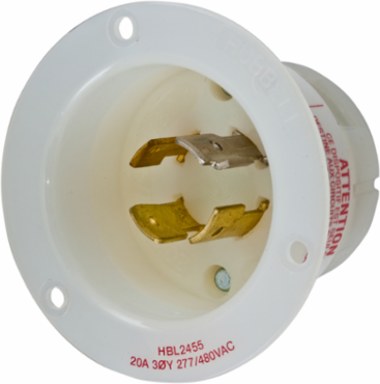

Hubbell Wiring Device-Kellems HBL2455 Insulgrip Twist-Lock Flanged Inlet, 20A, 3-Phase WYE 277/480V AC, 4-Pole, 4-Wire, Nylon, White
- MPN: HBL2455
- UPC: 783585038414
- PPN: HBL-HBL2455
- UNSPSC: 39121406
CAD
$86.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 3-Phase Wye 277/480V AC, 4-Pole 4-Wire Non-Grounding, NEMA L19-20P, Screw Terminal, Nylon casing, Back wired, White
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.06 in x 3.06 in x 2.27 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 20 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L19-20P
- Number of Wires
- 4-Wire
- Size
- 3.06 in x 3.06 in x 2.27 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 3 Phase WYE 277/480 VAC
- Voltage Rating Description
- 3 Phase WYE 277/480 VAC
- Width
- 3.06 in
- Connectivity
- Back Wired Screw Terminals
- Nema Rating
- L19-20P
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2455
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 6.245x10.375x8.245 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585038414
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height2.27 in
Length3.06 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles4-Pole
Phase3 Phase WYE
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#16 AWG to #8 AWG
Weight0.3 lb.
Engineering Drawing 1 Display TextHBL2455 AutoCAD Drawing
Display SizeStandard Sized Product
Number Of Poles4-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG-INLT, 20A 3PH 120/208V, L19-20P
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A110
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
