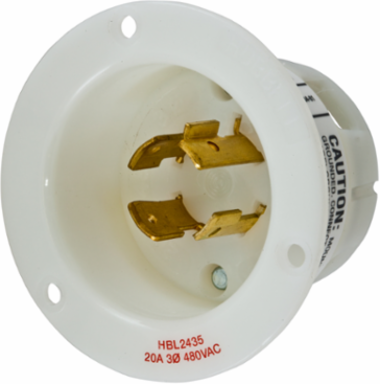

Hubbell Wiring Device-Kellems HBL2435 Insulgrip Twist-Lock Flanged Inlet, 20A 3-Phase 480V AC, 3-Pole 4-Wire, White
- MPN: HBL2435
- UPC: 783585038322
- PPN: HBL-HBL2435
- UNSPSC: 39121406
CAD
$90.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, NEMA L16- 20P, Screw Terminal, Nylon casing, Back wired, White.
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2435 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Entertainment Product Solution Guide
- Country of Origin
- United States
- Dimensions
- 3.06 in x 3.06 in x 2.27 in
- Horsepower - Maximum
- 5
- Length
- 3.06 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 3 Phase 480 VAC
- Voltage Rating Description
- 3 Phase 480 VAC
- Width
- 3.06 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG FLG-INLT, 20A 3P 480V, L16-20P, WH
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 6.800x10.300x8.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585038322
- Case Weight
- 3.250 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
General Literature Asset 3 Display TextEmergency Preparedness for Healthcare
Current / Amperage Rating20 A
Height2.27 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL16-20P
Number of Wires4-Wire
Size3.06 in x 3.06 in x 2.27 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
TypeFlanged Inlet
Wire Size#16 AWG to #8 AWG
Weight0.25 lb.
ConnectivityScrew Terminals
Nema RatingL16-20P
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2435
Cord Range0.350"-1.150" (9-29)
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.300 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet Height45.800 in
Pallet Weight410.500 lb.
NAICS Code335931A102
