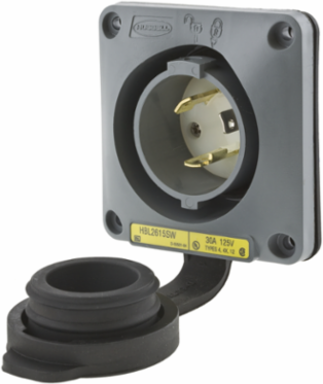

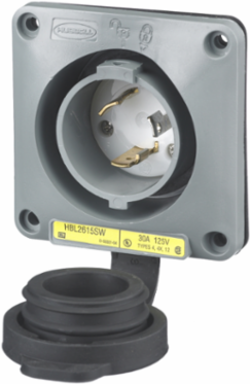

Hubbell Wiring Device-Kellems HBL2615SW Twist-Lock Flanged Inlet, 30A 125V, 2-Pole, Thermoplastic, Watertight
- MPN: HBL2615SW
- UPC: 783585231648
- PPN: HBL-HBL2615SW
- UNSPSC: 39121406
CAD
$222.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Gray.
Features
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Entertainment Product Solution Guide
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Current / Amperage Rating
- 30 A
- Height
- 2.27 in
- Length
- 3.75 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Shrouded Watertight Construction
- Type
- Flanged Inlet
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.60 lb.
- Connectivity
- Back Wired Screw Terminals
- Nema Rating
- L5-30P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A130
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.65 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Each - Pack Description
- Each
General Literature Asset 2 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
Country of OriginUnited States
Dimensions3.75 in x 3.75 in x 2.27 in
Industry Standard(s)UL Listed, CSA Certified To Type 4, 4X And Type 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating30 A
ColorGray
Environmental ConditionsWatertight
NEMA RatingL5-30P
Number of Wires3-Wire
Size3.75 in x 3.75 in x 2.27 in
StandardUL Listed, CSA Certified To Type 4, 4X And Type 12
Voltage Rating125 VAC
Voltage Rating Description125 VAC
Width3.75 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG WT S/SHRD FLG-INLT, 30A 125V, L5-30P
Harmonization Code8536699999
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE4.700x9.700x9.800 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585231648
Case Weight3.350 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
