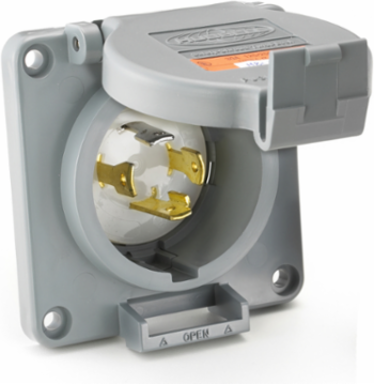

Hubbell Wiring Device-Kellems HBL2615SWR Twist-Lock® Male Inlet, 30A 125V, 2-Pole 3-Wire, Shrouded Watertight
Hubbell Wiring Device-Kellems HBL2615SWR Twist-Lock® Male Inlet, 30A 125V, 2-Pole 3-Wire, Shrouded Watertight
- MPN: HBL2615SWR
- UPC: 783585458083
- PPN: HBL-HBL2615SWR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$246.06/ EA
Description
Locking Devices, Twist-Lock®, Male Inlet, Reversed Service, Industrial Grade, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Gray
Features
- UL type 4X environmental seal while in use and when closed
- High impact, thermoplastic housing for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Shrouded Watertight Reverse Service
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 3.75 in x 3.75 in x 2.69 in
- Industry Standard(s)
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Extra Heavy Duty Industrial
- Environmental Conditions
- Watertight
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Shrouded Watertight Reverse Service
- Type
- Flanged Inlet
- Wire Size
- #16 AWG to #8 AWG
- Width
- 3.75 in
- Connectivity
- Back Wired Screw Terminals
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- REVERSE SERVICE INLET 30A 125V, L5-30P
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Current Rating
- 30 A
- BOX SIZE
- 4.900x9.900x9.900 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585458083
Current / Amperage Rating30 A
Height2.69 in
Length3.75 in
Amperage Rating30 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL5-30P
Number of Wires3-Wire
Size3.75 in x 3.75 in x 2.69 in
StandardUL Listed, CSA Certified To Type 4, 4X And Type 12
Voltage Rating125 VAC
Voltage Rating Description125 VAC
Engineering Drawing 1 Display TextHBL2615SWR AutoCAD Drawing
Nema RatingL5-30P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
