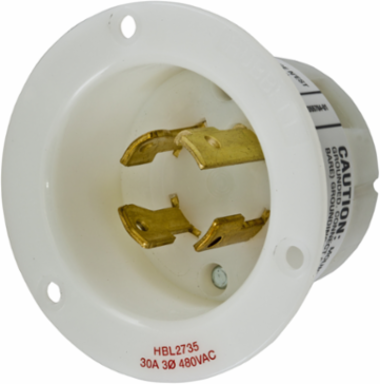

Hubbell Wiring Device-Kellems HBL2735 Twist-Lock Flanged Inlet 30A 3-Phase 480V AC 3-Pole 4-Wire Grounding
- MPN: HBL2735
- UPC: 783585039350
- PPN: HBL-HBL2735
- UNSPSC: 39121406
CAD
$116.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16- 30P, Screw Terminal, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 3-Pole
- Wire Size
- #16 AWG to #8 AWG
- Dielectric Strength
- 2000 V
- Weight
- 0.25 lb
- Type
- Flanged Inlet
- Terminal Screws
- #10-32 Brass (Slotted, Phillips, Robertson)
- Compliance
- UL Listed, CSA C22.2 No.42, Fed.Spec. W-C-596, RoHS Compliant
- Color
- White
Voltage3 Phase 480 VAC
Number of Wires4-Wire
Operating Temperature-40 C to 75 C
Dimensions3.06 in x 3.06 in x 2.27 in
MaterialNylon
Mounting HardwareScrew Mounting
ConnectivityBack Wired Screw Terminals
NEMA RatingL16-30P
Country of OriginUS
