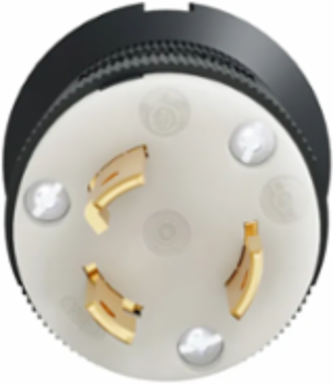

Hubbell Wiring Device-Kellems HBL2621ST EdgeConnectTM Twist-Lock Male Plug 30A 250V 2-Pole 3-Wire Grounding
- MPN: HBL2621ST
- UPC: 783585681955
- PPN: HBL-HBL2621ST
- UNSPSC: 39121402
CAD
$58.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screwless Terminal, Black and White
Features
- Faster termination time
- No need for torque wrench
- Strong steel spring eliminates strand relaxation
- Funnel shaped wire entry for ease of termination.
- Superior cord grip design protects terminations from excess strain
- EdgeConnectTM Technology, Screwless Termination
Documentation & Downloads
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Poles | 2 |
| Grounding | Yes |
| Weight | 0.25 lbs |
| Material | Nylon (Housing, Terminal Retainer, Plunger), Copper Alloy (Blades), Spring Steel (Terminal Spring Clamp), Zinc Plated (Assembly Screws) |
| Terminal Accommodation | #14 AWG - #8 AWG stranded copper wire |
| Moisture Resistance | IP20 Suitability |
| Compliance | UL 498 Listed, CSA C22.2 No.42 Certified, Fed.Spec. W-C-596 |
| Series | EdgeConnect14 Twist-Lockae Series |
| Voltage | 250 V |
|---|---|
| Wires | 3 |
| Width | 2.4 in |
| Cord Diameter | 0.360 - 0.930 in (9-24 mm) |
| Dielectric Voltage | 3000 V |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Operating Temperature | -40 C to 75 C |
| Country of Origin | CN |
