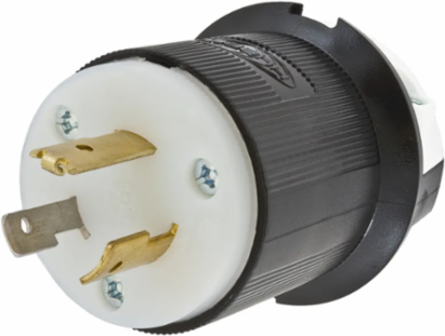

Hubbell Wiring Device-Kellems HBL3721 Twist-Lock Male Plug, 20A 347V AC, 2-Pole 3-Wire Grounding, Black & White
- MPN: HBL3721
- UPC: 783585046594
- PPN: HBL-HBL3721
- UNSPSC: 39121402
CAD
$29.66
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Industrial, Male Plug, 20A 347V AC, 2-Pole 3-Wire Grounding, L24-20P, Screw Terminal, Black and White.
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.75 in x 2.26 in x 2.26 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 20 A
- Color
- Black, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Wire Size
- #12 AWG to #10 AWG
- Weight
- 0.3 lb.
- Engineering Drawing 1 Display Text
- HBL3721 AutoCAD Drawing
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L24-20P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A110
- Cord Range
- 0.360"-0.930" (9-24)
- Cord Diameter
- 0.360-0.930 in
- Material
- Nylon
- BOX SIZE
- 8.200x12.400x9.200 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585046594
- Case Weight
- 9.350 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 41.000 in
- Pallet Weight
- 748.000 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height2.26 in
Length2.75 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Cord TypeAll Listed Portables
NEMA RatingL24-20P
Number of Wires3-Wire
Size2.75 in x 2.26 in x 2.26 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating Description347 VAC
Width2.26 in
ConnectivityPressure Terminal Screws
Display SizeStandard Sized
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG PLUG, 20A 2P3W, 347V, L24-20P, B/W
Harmonization Code8536694020
MSDS FlagNo
Cable Range0.360 - 0.930 in
Material - Mounting HardwareCord Mounted
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.550 lb.
Carton - Pack DescriptionCarton
Carton - Total Units30 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585046593
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
