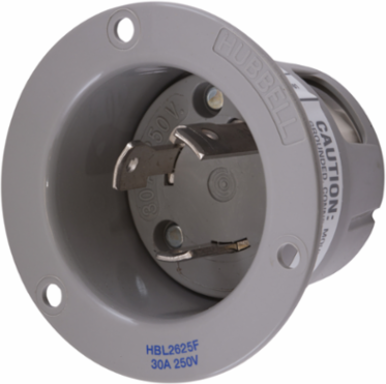

Hubbell Wiring Device-Kellems HBL2625F Insulgrip Flanged Inlet, 30A, 250V AC, 2-Pole, Grey Nylon
- MPN: HBL2625F
- UPC: 783585038919
- PPN: HBL-HBL2625F
- UNSPSC: 39121406
CAD
$109.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Insulgrip® Flanged Inlet, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30P, Heat stabilized, gray nylon
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- High Temperature Version
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.88 in x 2.88 in x 2.16 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 30 A
- Color
- Gray
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L6-30P
- Number of Wires
- 3-Wire Grounding
- Size
- 2.88 in x 2.88 in x 2.16 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.20 lb.
- Engineering Drawing 1 Display Text
- HBL2625F AutoCAD Drawing
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- CAT#HBL2625, MOD, HI TEMP, GY
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.550 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 7.600 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Height2.16 in
Length2.88 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesHigh Temperature Version
Voltage Rating250 VAC
Voltage Rating Description250 VAC
Width2.88 in
ConnectivityBack Wired Screw Terminals
Nema RatingL6-30P
Number Of Wires3-Wire Grounding
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2625F
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE3.600x12.600x6.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585038919
Case - Total Units30 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
