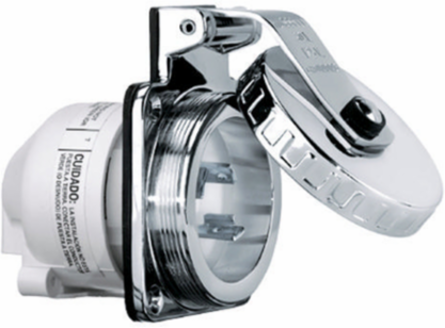

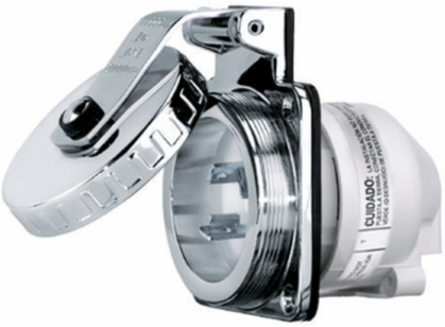

Hubbell Wiring Device-Kellems HBL316SSX Marine Grade Twist-Lock Round Hull Inlet, 16A AC, 3-Wire Grounding
- MPN: HBL316SSX
- UPC: 783585040882
- PPN: HBL-HBL316SSX
- UNSPSC: 39121406
CAD
$285.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Marine Grade, Round Hull Inlet, 16A V AC, 50 Cycles, 2-Pole 3-Wire Grounding, International, Screw Terminal, Stainless Steel
Features
- New quick connect with backwards compatibility
- Self-closing Cover
- Thermoset Contact Carrier
- Corrosion Resistant Rear enclosure
- Marine Grade
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 4.700 in
- Performance
- Environmental - Moisture Resistance - IP56 Suitability
- Amperage Rating
- 16 A
- Color
- Metallic
- NEMA Rating
- Non-NEMA
- Number of Wires
- 3-Wire Grounding
- Special Features
- Marine Grade
- Voltage Rating
- 230V kV
- Wire Size
- #14 AWG to #12 AWG
- Connectivity
- Screw Terminals
- Nema Rating
- Non-NEMA
- Number Of Wires
- 3-Wire Grounding
- Description - Invoice
- MARINE ROUND HULL INLET, 16A 230V, SS
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 6.400x14.700x9.600 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585040882
- Case Weight
- 9.450 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating16 A
Industry Standard(s)CE Certified
Standards - RoHS Compliance StatusCM
ApplicationMarine Wiring Devices
Environmental ConditionsWatertight
Number of Poles2-Pole
PhaseSingle Phase
StandardCE Certified
Wattage480
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Display SizeStandard Sized Product
Number Of Poles2-Pole
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A110
Current Rating16 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- No
