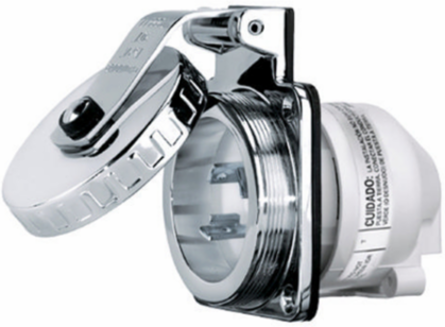

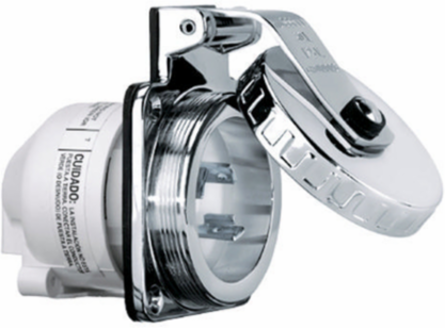

Hubbell Wiring Device-Kellems HBL332SSX Twist-Lock® Marine Grade Round Hull Inlet 32A 230V AC 2-Pole 3-Wire Grounding

Twist-Lock® Marine Grade Round Hull Inlet 32A 230V AC 2-Pole 3-Wire Grounding
Twist-Lock® Marine Grade Round Hull Inlet 32A 230V AC 2-Pole 3-Wire Grounding
  • MPN: HBL332SSX
  • UPC: 783585040899
  • PPN: HBL-HBL332SSX
  • UNSPSC: 39121406

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$335.29/ EA

Description

Locking Devices, Twist-Lock®, Marine Grade, Round Hull Inlet, 32A 230V AC, 50 Cycles, 2-Pole 3-Wire Grounding, International, Screw Terminal, Stainless Steel

Features

  • New quick connect with backwards compatibility
  • Self-closing Cover
  • Thermoset Contact Carrier
  • Corrosion Resistant Rear enclosure

Specifications

Amperage
32 A
Number of Poles
2-Pole
Frequency
50 Hz
Wire Size Range
#12 AWG to #10 AWG
Temperature Rating
-40° C to 75° C
Material
Thermoplastic
Mounting Type
Screw Mounting
Certifications
CE Certified
Standards - RoHS Compliance Status
CM
Harmonization Code
8536694020
Voltage230 V
Number of Wires3-Wire Grounding
PhaseSingle Phase
Wattage7360 W
Dielectric StrengthWithstands 3000 V minimum
ConnectivityPressure Terminal Screws
ColorStainless
EU RoHS IndicatorNo
Country of OriginUS
