Hubbell Wiring Device-Kellems

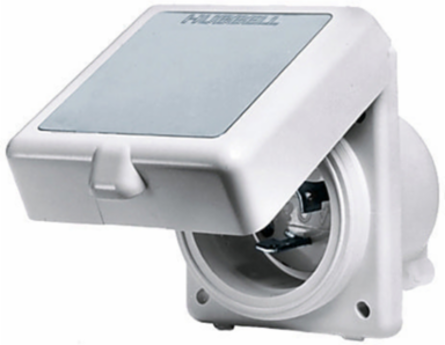

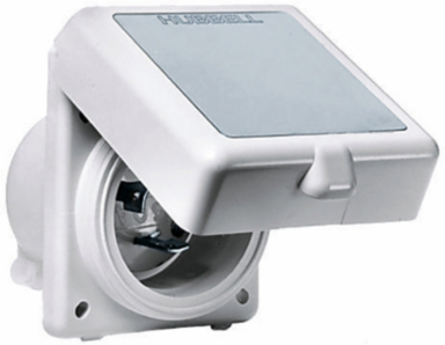

Hubbell Wiring Device-Kellems HBL316NM Twist-Lock Marine Grade Hull Inlet, 16A 230V, 2-Pole 3-Wire Grounding

Twist-Lock Marine Grade Hull Inlet, 16A 230V, 2-Pole 3-Wire Grounding
Twist-Lock Marine Grade Hull Inlet, 16A 230V, 2-Pole 3-Wire Grounding
  • MPN: HBL316NM
  • UPC: 783585040608
  • PPN: HBL-HBL316NM
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$157.71/ EA

Description

Locking Devices, Twist-Lock®, Marine Grade, Hull Inlet, 16A 230V 50 Cycles, 2-Pole 3-Wire Grounding, International, Screw Terminal, White

Features

  • New quick connect with backwards compatibility
  • Self-closing Cover
  • Thermoset Contact Carrier
  • Corrosion Resistant Rear enclosure

Specifications

Specifications

Country of Origin
Puerto Rico
Width
4.700 in
Performance
Environmental - Moisture Resistance - IP56 Suitability
Application
Marine Wiring Devices
Dielectric Strength
Withstands 3000V Minimum in
Insulation
Insulated Body
Number of Wires
3-Wire Grounding
Standard
CE Certified
Voltage Rating
230V kV
Wire Size
#14 AWG to #12 AWG
Connectivity
Pressure Terminal Screws
Number Of Poles
2-Pole
Class Code
A08
Freight Class Code
06168002
Image Actual Or Representative
A
Replaced Catalog Number
NM240X
Material - Mounting Hardware
Screw Mounting
Material
Thermoplastic
BOX SIZE
6.400x14.600x9.500 (in)
Carton - Number of Sub Packs
5
Carton - SCC-14 Next Lower Level Sub Pack
783585040608
Case Weight
4.200 lb.
Lowest Level UOM
Each
Current / Amperage Rating16 A
Industry Standard(s)CE Certified
Amperage Rating16 A
ColorWhite
Environmental ConditionsWatertight
Number of Poles2-Pole
PhaseSingle Phase
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Wattage3680
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Display SizeStandard Sized Product
Number Of Wires3-Wire Grounding
Description - InvoiceMARINE HULL INLET, 16A 230V, NM
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A110
Current Rating16 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
No
