Hubbell Wiring Device-Kellems

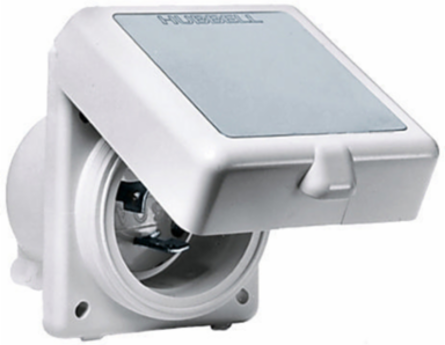

Hubbell Wiring Device-Kellems HBL332NM Twist-Lock Marine Grade Hull Inlet, 32A 230V AC, 2-Pole 3-Wire Grounding

Twist-Lock Marine Grade Hull Inlet, 32A 230V AC, 2-Pole 3-Wire Grounding
  • MPN: HBL332NM
  • UPC: 783585040622
  • PPN: HBL-HBL332NM
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$244.58/ EA

Description

Locking Devices, Twist-Lock®, Marine Grade, Hull Inlet, 32A 230V AC 50 Cycles, 2-Pole 3-Wire Grounding, International, Screw Terminal, White

Features

  • New quick connect with backwards compatibility
  • Self-closing Cover
  • Thermoset Contact Carrier
  • Corrosion Resistant Rear enclosure

Specifications

Specifications

Country of Origin
Puerto Rico
Width
4.200 in
Performance
Environmental - Moisture Resistance - IP56 Suitability
Application
Marine Wiring Devices
Dielectric Strength
Withstands 3000V Minimum in
Insulation
Insulated Body
Number of Wires
3-Wire Grounding
Standard
CE Certified
Voltage Rating
230V kV
Wire Size
#12 AWG to #10 AWG
Connectivity
Pressure Terminal Screws
Number Of Poles
2-Pole
Class Code
A08
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A08A110
Current Rating
32 A
Base Unit of Measure
EA
Carton - Gross Weight per Pack
4.1 lb.
Carton - Pack Description
Carton
Carton - Total Units
5 EA
Lowest Level UOM
Each
Current / Amperage Rating32 A
Industry Standard(s)CE Certified
Amperage Rating32 A
ColorWhite
Environmental ConditionsWatertight
Number of Poles2-Pole
PhaseSingle Phase
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Wattage7360
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Display SizeStandard Sized Product
Number Of Wires3-Wire Grounding
Description - InvoiceMARINE HULL INLET, 32A 230V, NM
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE5.800x12.100x9.400 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585040622
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
No
