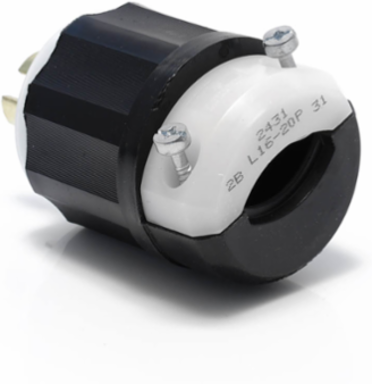

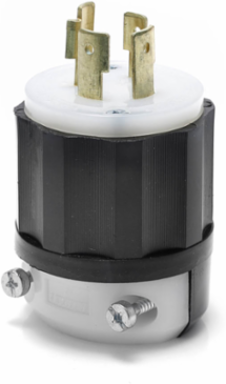

Leviton 2431 Industrial Locking Plug 20 Amp 480 Volt NEMA L16-20P, 3-Phase, Rugged Nylon
- MPN: 2431
- UPC: 078477808184
- PPN: LEV-2431
CAD
$38.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 480 Volt 3-Phase, NEMA L16-20P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Additional
- Voltage
- 480 VAC
- Phase
- 3-Phase

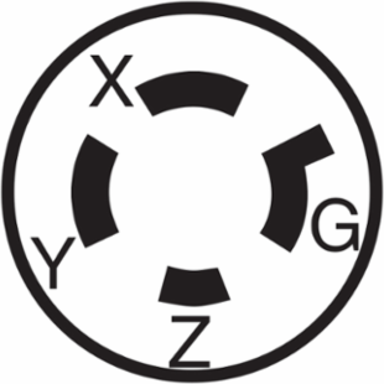

- NEMA Configuration
- WD-6
- Current Interrupting
- Certified at full rated current
- At Rated Voltage
- 5 HP
- Cord Range
- 0.560 to 0.775 in
- Terminal Accom.
- 18-10 AWG
- Blades/Contacts
- Solid Brass
- Assembly Screws
- Steel, Zinc Plated
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Grounding
- Grounding
- Dielectric Voltage
- Withstands 2000 V per UL498
- CSA C22.2 No. 42
- File LR-406
- NOM
- 057
- RoHS Compliant
- True
- Color
- Black-White
- Brand
- Black and White
Amperage20 A
Pole3
Wires4
Temperature RiseMax 30°C after 250 cycles OL at 200% rated current
Torque Range10-14 in-lbs
Wire Gauge14-10 AWG
MaterialImpact Modified Nylon
Terminal ScrewsBrass
Back CoverThermoplastic
Wire ModuleNylon
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Flammability RatingUL94 HB or better
UL498File E13393
ANSIC-73
UL Fed Spec WC-596File E13393
EnvironmentDry
Country of OriginMexico
