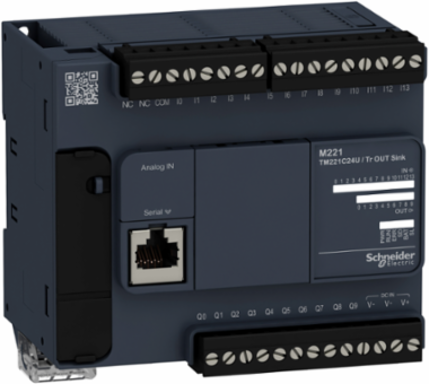

Schneider Electric TM221C24U Modicon M221 Logic Controller 24 I/O, 0.5A Output, IP20 Rated
- MPN: TM221C24U
- PPN: SCH-TM221C24U
CAD
$467.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
CONTROLLER M221-24IO TR.NPN This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 14 discrete, 4 fast inputs, 10 sink transistor outputs, 2 fast outputs with PNP transistor output with 10bit resolution. The I/O are connected on removable screw terminal blocks. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.395kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. The Modicon M221 logic controllers are programmed with EcoStruxure Machine Expert - Basic software. It supports DIN rail mount.
Documentation & Downloads
Specifications
Key Specifications
- Discrete Output Type
- transistor
- Discrete Output Number
- 10 transistor 2 fast output
- Discrete Output Current
- 0.5 A
- Analogue Input Number
- 2 0...10 V
- Discrete Input Number
- 14 , discrete input 4 fast input IEC 61131-2 Type 1
Range Of ProductModicon M221
Product Or Component Typelogic controller
Discrete Output Voltage24 V DC
[Us] Rated Supply Voltage24 V DC
Complementary
- Discrete Input Logic
- sink or source (positive/negative)
- Exct Time For Event Task
- 60 µs response time
- Electrical Connection
- removable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal
- Height
- 90 mm
- Discrete Input Voltage
- 24 V
- Inrush Current
- 35 A
- Positioning Functions
- PTO 2 pulse/direction 100 kHz) || PTO 1 CW/CCW 100 kHz)
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
- Battery Type
- BR2032 or CR2032X lithium non-rechargeable
- Communication Port Protocol
- USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
- Marking
- CE
- Discrete I/O Number
- 24
- Maximum Number Of I/O Expansion Module
- 7 local || 14 remote
- Net Weight
- 0.77 kg
- Maximum Voltage Drop
- <1 V
- Maximum Size Of Object Areas
- 512 %M memory bits || 8000 %MW memory words || 512 %KW constant words || 255 %TM timers || 255 %C counters
- Conversion Time
- 1 ms per channel + 1 controller cycle time analog input
- Function Available
- frequency generator || PLS || PWM
- Supply Voltage Limits
- 20.4-28.8 V
- Execution Time Per Instruction
- 0.2 µs Boolean
- Absolute Accuracy Error
- +/- 1 % of full scale analog input
- Local Signalling
- PWR 1 LED green) || RUN 1 LED green) || module error (ERR) 1 LED red) || SD card access (SD) 1 LED green) || BAT 1 LED red) || SL1 1 LED green) || SL2 1 LED green) || I/O state 1 LED per channel green)
- Discrete Input Current
- 7 mA discrete input || 5 mA fast input
- Analogue Input Resolution
- 10 bits
- Lsb Value
- 10 mV
- Depth
- 70 mm
- Maximum Leakage Current
- 0.1 mA transistor output
- Insulation
- between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs
- Counting Input Number
- 4 fast input (HSC mode) 100 kHz 32 bits
Data Backed Up256 kB built-in flash memory backup of application and data
Input Impedance3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input
Maximum Cable Distance Between Devicesshielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output
Discrete Output Logicnegative logic (sink)
Maximum Power Consumption In W13 W 24 V with max number of I/O expansion module) || 4.1 W 24 V without I/O expansion module)
Discrete Input Voltage TypeDC
Maximum Current Per Output Common5 A
Clock Drift<= 30 s/month 25-25 °C
Output Frequency100 kHz fast output (PWM/PLS mode) Q0...Q1 || 5 kHz output Q2...Q3 || 0.1 kHz output Q4...Q9
Protection Typewithout protection
Backup Time1 year 25 °C by interruption of power supply)
Regulation Loopadjustable PID regulator up to 14 simultaneous loops
Power Supply Output Current0.52-0.52 A 5 V expansion bus || 0.2-0.2 A 24 V expansion bus
Voltage State 0 Guaranteed<= 5 V input
Configurable Filtering Time0 ms input || 3 ms input || 12 ms input
Memory Capacity256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
Voltage State 1 Guaranteed>= 15 V input
Control Signal TypeA/B || single phase || pulse/direction
Integrated Connection TypeUSB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485
Mechanical Durability20000000 cycles transistor output
Mounting Supporttop hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Response Time35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 5 µs turn-on, turn-off, Q0...Q1 output || 50 µs turn-on, turn-off, Q2...Q3 output || 300 µs turn-on, turn-off, other terminals output
Execution Time For 1 Kinstruction0.3 ms event and periodic task
Realtime Clockwith
Width110 mm
Maximum Tungsten Load<12 W output and fast output
Data Storage Equipment2 GB SD card optional)
Supplyserial)serial link supply 5 V, <200 mA
Permitted Overload On Inputs+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
Environment
- Product Certifications
- EAC || DNV-GL || LR || ABS || RCM || cULus || CE || UKCA || cULus HazLoc
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
- Immunity To Microbreaks
- 10 ms
- Pollution Degree
- <= 2
- Shock Resistance
- 147 m/s² 11 ms
- Vibration Resistance
- 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
- Environmental Characteristic
- ordinary and hazardous location
- Ip Degree Of Protection
- IP20 with protective cover in place
- Surge Withstand
- 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV power lines (AC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 0.5 kV power lines (DC) common mode IEC 61000-4-5
- Operating Altitude
- 0...2000 m
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
StandardsIEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
Storage Altitude0-3000 m
Ambient Air Temperature For Operation-10-55 °C horizontal installation) || -10-35 °C vertical installation)
Resistance To Magnetic Fields30 A/m 50/60 Hz IEC 61000-4-8
Ambient Air Temperature For Storage-25-70 °C
Relative Humidity10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
Electromagnetic Emissionconducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403012EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1403012EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
