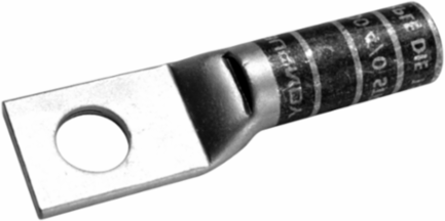

Burndy YAZ39TC12 Long Length Barrel Terminal, 750 kcmil, 1/2 Inch Stud, 4.87 Inch Length

MPN: YAZ39TC12
UPC: 781810240670
PPN: BUR-25020452

$102.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

1 Hole HYLUG Cu Compr Terminal, Long Brrl, W/ Insp Window, 750 kcmil, 1/2" stud, Black, 24 Index

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	2-7/8 in
Dimension - Bolt Hole Size inch	0.52 in
Dimension - Hole Size inch	0.52 in
Dimension - L Length Overall mm	124 mm
Dimension - N inch	0.53 in
Dimension - Pad Width inch	1.91 in
Dimension - Stud Size inch	1/2
Physical Attribute - Tongue Angle	Straight

Dimension - B Length inch	2.88 in
Dimension - Bolt Size fraction	1/2
Dimension - Hole Size mm	13 mm
Dimension - Length Overall inch	4.87 in
Dimension - Outside Diameter inch	1.30 in
Dimension - Strip Length inch	2-15/16
Dimension - Z inch	0.55 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper Str Size	750 kcmil

Conductor - Material	Copper

General

Color Code	Black
Die Index	24
Feature - Barrel Type	Long
Physical Attribute - Number of Holes	1
Plating Type	Tin - Electro Plated
Type	Long Barrel, Skive, Tin Plated
UPC 12 Digit	7818102406700
