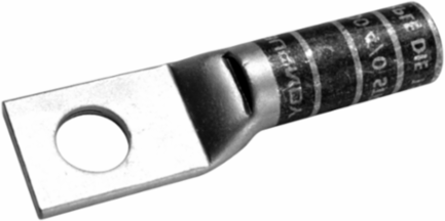

Burndy YAZ45TC12 Long Length Barrel Terminal, Copper, 1250 kcmil, 1/2 Inch Stud, 5.43 Inch Overall Length
- MPN: YAZ45TC12
- UPC: 781810240854
- PPN: BUR-25020470
CAD
$235.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Tubing Terminal, 1 Hole W/insp Window, 1250 kcmil, 1/2 IN Stud, 5.43 IN L, 2.46 IN W, 29 Index, Wire Strip Length: 3-1/4 IN
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 3-3/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.52 in
- Dimension - L Length Overall mm
- 138 mm
- Dimension - N inch
- 0.53 in
- Dimension - Pad Width inch
- 2.46 in
- Dimension - Stud Size inch
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch3.19 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm13 mm
Dimension - Length Overall inch5.43 in
Dimension - Outside Diameter inch1.69 in
Dimension - Strip Length inch3-1/4
Dimension - Z inch0.55 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Size
- 1250 kcmil
Conductor - MaterialCopper
General
- Color Code
- Yellow
- Die Index
- 29
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- Type
- Long Barrel, Skive, Tin Plated
- UPC 12 Digit
- 7818102408544
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810240854
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 3
