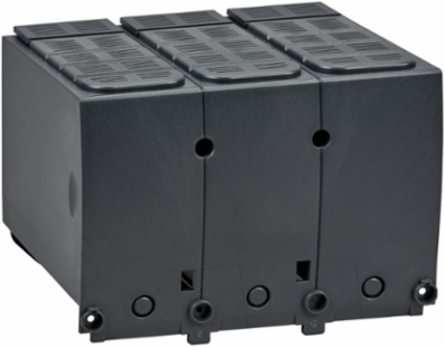

Schneider Electric LV432593 Long Terminal Shield for ComPact NSX400/630, 3 Poles, 45 mm Pitch, IP40

MPN: LV432593
PPN: SCH-LV432593

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$366.91/ EA

Qty:

Loading add to cart quantity...

Description

This is an insulation accessory for 3 poles Compact NSX 400/630 or EasyPact CVS 400/630. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 45mm. It provides IP40 degree of protection and IK07 mechanical impact protection.

Specifications

Offer Sustainability

Rohs Exemption Information: Yes

Toxic Heavy Metal Free: Yes

Reach Free Of Svhc: Yes

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)

Complementary

Connection Pitch: 45 mm

Ip Degree Of ProtectionIP40 IEC 60529

Specifications

Range Compatibility: ComPacT new generation ComPacT NSX400 new generation || ComPacT new generation ComPacT NSX630 new generation || ComPact ComPact NSX400 || ComPact ComPact NSX630 || EasyPact EasyPact CVS400 || EasyPact EasyPact CVS630 || PowerPact PowerPact L

Poles Description: 3P

Accessory / Separate Part Type: insulation accessories

Product Or Component Typelong terminal shield

Quantity Per Set1

Contractual warranty

Warranty: 18 months
