Acme Electric T253518SS Low Voltage Distribution Transformer 25kVA 240X480V 316 Stainless Steel
- MPN: T253518SS
- UPC: 047503130612
- PPN: HBL-T253518SS
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

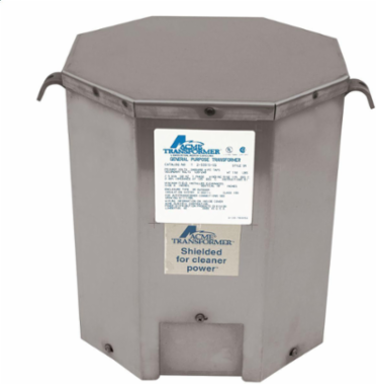

Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 25kVA, 316 Stainless Steel
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 4
- Dimensions
- 13.34 in x 16.13 in x 18.44 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Dry Type Distribution Transformer
- Taps % Steps
- 2.5%
- Height
- 18.44 in
- Mounting
- Wall
- Width
- 16.13 in
- UL Standard
- UL 506
- Material type
- ZFIN
- Nema Rating
- NEMA 3R
- Class Code
- D10
- Harmonization Code
- 8504330020
- Stock Indicator
- S - Shelf Stock
- Electrostatic Shield
- Shielded
- Construction
- Encapsulated
- BOX SIZE
- (in)
- NAICS Code
- 335311
ANFC Taps2
CSA StandardC22.2 No. 47
kVA25.0
Product CategoryDry Type Distribution Transformer
Secondary Voltage120/240 V
Frequency Rating60 Hz
Length13.34 in
Primary Voltage240 X 480 V
UL Insulation Class180°C
Weight250 lb.
Mounting TypeWall
ARRA CompliantContact Manufacturer
Freight Class Code06342001
Image Actual Or RepresentativeR
Sub Class CodeD10D100
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503130612
Certifications
- Buy American Compliant
- Contact Manufacturer
