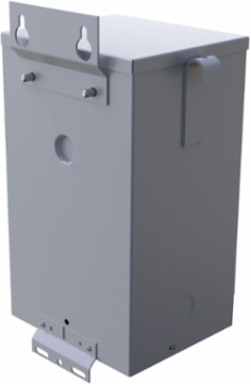

Acme Electric TF279263S Low Voltage Distribution Transformer 5kVA 190/208/220/240V 120/240V NEMA 3R

MPN: TF279263S
UPC: 047503400067
PPN: HBL-TF279263S
UNSPSC: 39121001

$3124.43

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Low Voltage Distribution Transformer - Single Phase, 190/208/220/240 X 380/416/440/480 - 120/240V, 5kVA

Features

Quiet operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Dimensions	7.13 in x 10.31 in x 14.38 in
Max Temperature Rise	115 Degrees Celsius
Product Type	Dry Type Distribution Transformer
Frequency Rating	50/60 Hz
Length	7.13 in
Primary Voltage	190/208/220/240 X 380/416/440/480 V
UL Insulation Class	180°C
Weight	75 lb.
Mounting Type	Wall
ARRA Compliant	Contact Manufacturer
Freight Class Code	06342001
Image Actual Or Representative	A
Sub Class Code	D10D100
Electrostatic Shield	Shielded
Construction	Encapsulated
BOX SIZE	18.000x13.000x15.000 (in)
Pallet Height	27.000 in
Pallet Weight	1611.000 lb.
NAICS Code	335311

CSA Standard	C22.2 No. 47
kVA	5.0
Product Category	Dry Type Distribution Transformer
Secondary Voltage	120/240 V
Height	14.38 in
Mounting	Wall
Width	10.31 in
UL Standard	UL 506
Material type	ZFIN
Nema Rating	NEMA 3R
Class Code	D10
Harmonization Code	8504320000
Stock Indicator	S - Shelf Stock
Buy America(n) Qualified	Contact Manufacturer
Winding Material	CU
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00047503400067
Pallet Length	40.000 in
Pallet Width	40.000 in
