Low Voltage Distribution Transformer 5kVA 240/480V 316 Stainless Steel

Documentation & Downloads

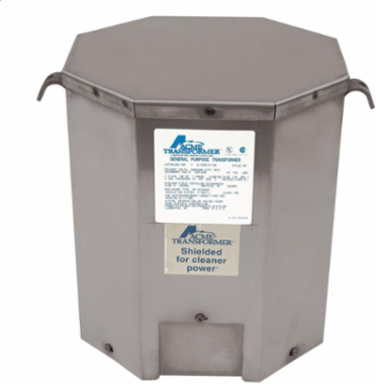

Acme Electric T253014SS Low Voltage Distribution Transformer 5kVA 240/480V 316 Stainless Steel

MPN: T253014SS
UPC: 047503130575
PPN: HBL-T253014SS
UNSPSC: 39121001

CAD

$4332.91

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 5kVA, 316 Stainless Steel

Features

Quiet operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Mexico

BNFC Taps: 2

Dimensions: 7.13 in x 10.31 in x 14.38 in

Max Temperature Rise: 115 Degrees Celsius

Product Type: Dry Type Distribution Transformer

Taps % Steps: 2.5%

Height: 14.38 in

Mounting: Wall

Width: 10.31 in

UL Standard: UL 506

Material type: ZFIN

Nema Rating: NEMA 3R

Class Code: D10

Harmonization Code: 8504320000

Stock Indicator: N - Non-stock

Electrostatic Shield: Shielded

Construction: Encapsulated

BOX SIZE: 8.500x13.000x11.000 (in)

Pallet Height: 22.000 in

Pallet Weight: 1009.000 lb.

NAICS Code: 335311

ANFC Taps2

CSA StandardC22.2 No. 47

kVA5.0

Product CategoryDry Type Distribution Transformer

Secondary Voltage120/240 V

Frequency Rating60 Hz

Length7.13 in

Primary Voltage240 X 480 V

UL Insulation Class180°C

Weight75 lb.

Mounting TypeWall

ARRA CompliantContact Manufacturer

Freight Class Code06342001

Image Actual Or RepresentativeR

Sub Class CodeD10D100

Winding MaterialCU

Base Unit of MeasureEA

Carton - SCC-14 Next Lower Level Sub Pack00047503130575

Pallet Length40.000 in

Pallet Width40.000 in

Certifications

Buy American Compliant: Contact Manufacturer
