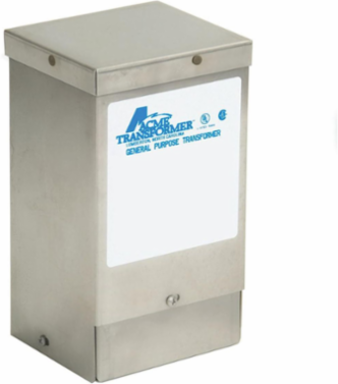

Single Phase Low Voltage Distribution Transformer 3kVA 240X480V 316 Stainless Steel
Acme Electric

Acme Electric T253013SS Single Phase Low Voltage Distribution Transformer 3kVA 240X480V 316 Stainless Steel

  • MPN: T253013SS
  • UPC: 047503084342
  • PPN: HBL-T253013SS
  • UNSPSC: 39121001

CAD

$2811.69

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 3kVA, 316 Stainless Steel

Features

  • Quiet operation with sound levels below NEMA standards
  • Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
BNFC Taps
2
Dimensions
7.13 in x 10.31 in x 11.5 in
Max Temperature Rise
115 Degrees Celsius
Product Type
Dry Type Distribution Transformer
Taps % Steps
2.5%
Height
11.5 in
Mounting
Wall
Width
10.31 in
UL Standard
UL 506
Material type
ZFIN
Nema Rating
NEMA 3R
Class Code
D10
Harmonization Code
8504320000
Stock Indicator
N - Non-stock
Electrostatic Shield
Shielded
Construction
Encapsulated
BOX SIZE
9.000x11.000x11.000 (in)
Pallet Height
41.000 in
Pallet Weight
1980.000 lb.
NAICS Code
335311
ANFC Taps2
CSA StandardC22.2 No. 47
kVA3.0
Product CategoryDry Type Distribution Transformer
Secondary Voltage120/240 V
Frequency Rating60 Hz
Length7.13 in
Primary Voltage240 X 480 V
UL Insulation Class180°C
Weight55 lb.
Mounting TypeWall
ARRA CompliantContact Manufacturer
Freight Class Code06342001
Image Actual Or RepresentativeR
Sub Class CodeD10D100
Winding MaterialCU
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503084342
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

Buy American Compliant
Contact Manufacturer
