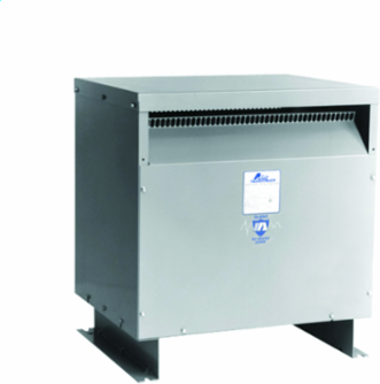

Low Voltage Distribution Transformer, 50 kVA, 600V Primary, 120/240V Secondary, 22.37 Inch x 28.15 Inch x 29.9 Inch

Documentation & Downloads

Acme Electric TP531203S Low Voltage Distribution Transformer, 50 kVA, 600V Primary, 120/240V Secondary, 22.37 Inch x 28.15 Inch x 29.9 Inch

MPN: TP531203S
UPC: 047503204337
PPN: HBL-TP531203S
UNSPSC: 39121001

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Low Voltage Distribution Transformer - Single Phase, 600 - 120V/240V, 50kVA

Features

Quiet operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection
Optional weather shield - WSA2

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Mexico

BNFC Taps: 4

Dept of Energy Regulation: Meets or exceed U.S. DOE 10 CFR Part 431

kVA: 50.0

Product Category: Dry Type Distribution Transformer

Secondary Voltage: 120/240 V

Frequency Rating: 60 Hz

Length: 22.37 in

Primary Voltage: 600 V

UL Insulation Class: 220°C

Weight: 340 lb.

Mounting Type: Floor

ARRA Compliant: Contact Manufacturer

Freight Class Code: 06342001

Image Actual Or Representative: R

Stock Indicator: N - Non-stock

Electrostatic Shield: Shielded

Construction: Ventilated

BOX SIZE: 34.000x34.000x29.000 (in)

Pallet Height: 34.000 in

Pallet Weight: 340.000 lb.

NAICS Code: 335311

ANFC Taps2

CSA StandardC22.2 No. 47

Dimensions22.37 in x 28.15 in x 29.9 in

Max Temperature Rise150 Degrees Celsius

Product TypeDry Type Distribution Transformer

Taps % Steps2.5%

Height29.9 in

MountingFloor

Width28.15 in

UL StandardUL 506

Material typeZFIN

Nema RatingNEMA 2

Class CodeD10

Harmonization Code8504330020

Replaced Catalog NumberTI531203S

Sub Class CodeD10D100

Winding MaterialAL

Base Unit of MeasureEA

Carton - SCC-14 Next Lower Level Sub Pack00047503204337

Pallet Length34.000 in

Pallet Width29.000 in

Certifications

Buy American Compliant: Contact Manufacturer
