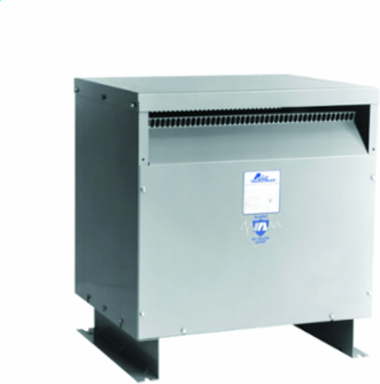

Acme Electric TP531193S Low Voltage Distribution Transformer 37.5kVA, 600V Primary, 120/240V Secondary
- MPN: TP531193S
- UPC: 047503090152
- PPN: HBL-TP531193S
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Distribution Transformer - Single Phase, 600 - 120V/240V, 37.5kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
- Optional weather shield - WSA1
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 4
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- kVA
- 37.5
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 120/240 V
- Frequency Rating
- 60 Hz
- Length
- 19.37 in
- Primary Voltage
- 600 V
- UL Insulation Class
- 220°C
- Weight
- 275 lb.
- Mounting Type
- Floor
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Stock Indicator
- N - Non-stock
- Electrostatic Shield
- Shielded
- Construction
- Ventilated
- BOX SIZE
- 33.000x33.000x28.000 (in)
- Pallet Height
- 33.000 in
- Pallet Weight
- 314.000 lb.
- NAICS Code
- 335311
ANFC Taps2
CSA StandardC22.2 No. 47
Dimensions19.37 in x 24.39 in x 25.5 in
Max Temperature Rise150 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps2.5%
Height25.5 in
MountingFloor
Width24.39 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 2
Class CodeD10
Harmonization Code8504330020
Replaced Catalog NumberTI531193S
Sub Class CodeD10D100
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503090152
Pallet Length33.000 in
Pallet Width28.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
